Mirror-Aluminum COB Structure
Specular aluminum substrate supports efficient light extraction and a professional COB lighting module structure.
1414 COB LED
1414 COB LED for Spotlights, Downlights and Commercial Lighting
KINGBRIGHT CM14XX 1414 COB LED is a mirror-aluminum COB LED series with 13.5 x 13.5 mm substrate, 11 mm light emitting surface, 120 degree viewing angle and 7W / 12W / 20W options for professional lighting projects.
Series: CM14XXSize: 13.5 x 13.5 x 1.5 mmLES: 11 mmPower: 7W / 12W / 20WAngle: 120 degCCT: 2700K-6500KESD: HBM 4000V
COB LED Module
Mirror-Aluminum COB LED Platform
Designed for commercial fixtures that require stable COB output, CCT/CRI selection and thermal review.
Product Images
1414 COB LED Product, Dimensions and Application Views
1414 COB LED Product Appearance
Real product image for the CM14XX mirror-aluminum COB LED package.
1414 COB LED Dimensions

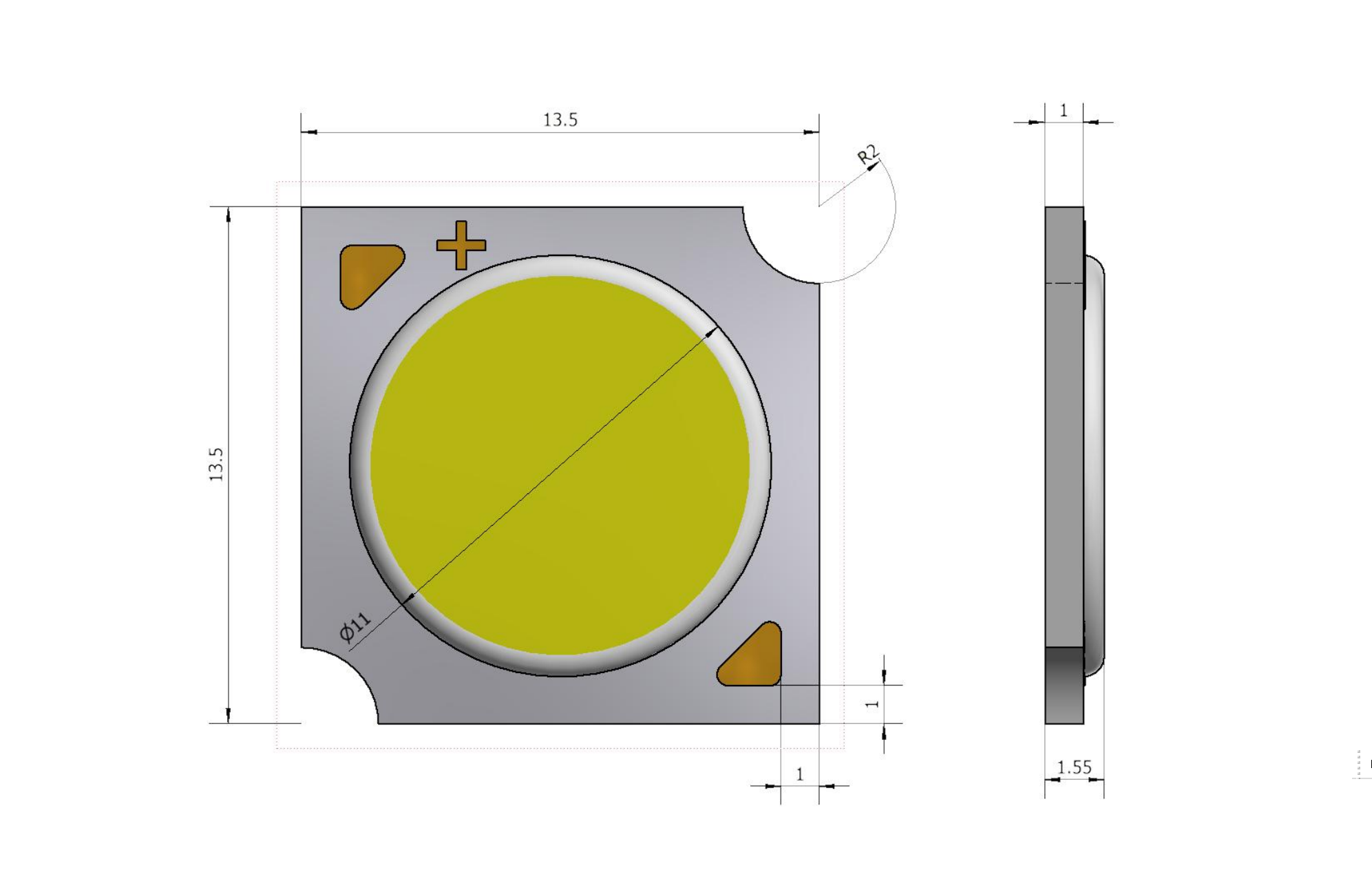

Package outline with 13.5 mm body size, 11 mm light emitting surface and 1.55 mm side reference.
Commercial Lighting Application

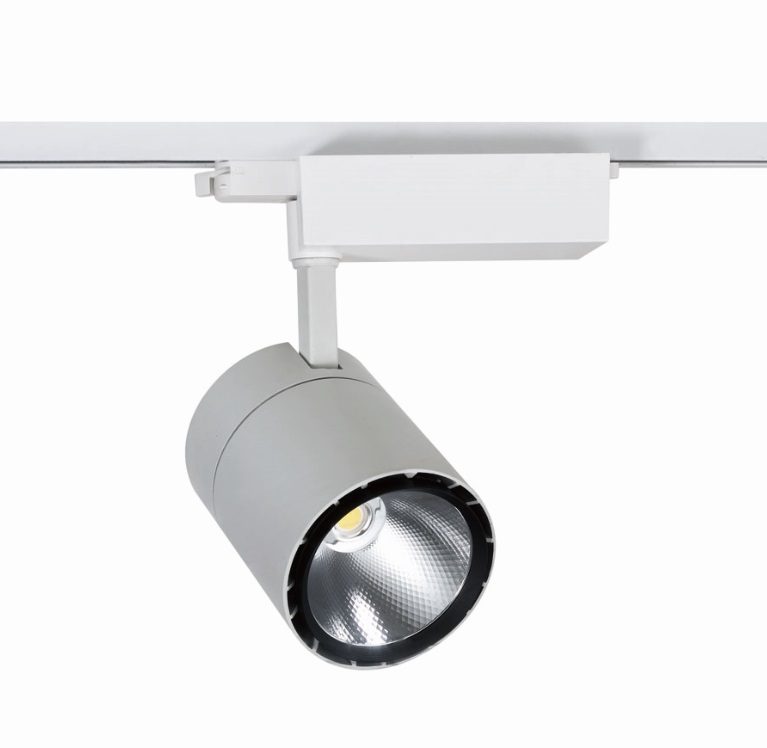

Application reference for spotlights, downlights, track lights and landscape lighting fixtures.
Technical Specifications
Real CM14XX 1414 COB LED Datasheet Parameters
The following values are extracted from the KINGBRIGHT CM14XX datasheet. Final product code should be confirmed by power, CCT, CRI, voltage code, color tolerance and suffix requirements.
Product SeriesCM14XX
Product Type1414 COB LED / mirror-aluminum COB LED
Package Size13.5 x 13.5 x 1.5 mm
Light Emitting Surface11 mm LES
SubstrateMirror aluminum substrate with silicone package
Viewing Angle120 degrees
Voltage Options36V option listed in typical electrical table; coding rules also define 9V / 18V / 36V voltage codes
CCT Range2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K color ranks
CRI CodingRa70 / Ra80 / Ra90 / Ra95 options by product code
ESDHBM 4000V
Operating Temperature-30 C to +80 C
Storage Temperature-40 C to +80 C
Junction Temperature125 C max
Hand Soldering350 +/-20 C for 3-5 sec
Packaging25 pcs x 4; label includes product model, lot no., flux/power, voltage/current, CCT/XY, Ra/SD/R9 and quantity
ComplianceRoHS compliant
Electrical & Optical Options
CM1407, CM1412 and CM1420 COB LED Options
| Model | Typical Power | Max Power | Binning Current | Max IF | Pulse IF | Typical Lumens | Thermal Resistance |
|---|---|---|---|---|---|---|---|
| CM1407 | 7W | 12W | 200mA / 36V | 360mA | 450mA | 1155 lm typ @ 4000K / Ra80; 985 lm typ @ 3000K / Ra90 | 2.4 C/W |
| CM1412 | 12W | 18W | 350mA / 36V | 550mA | 700mA | 1950 lm typ @ 4000K / Ra80; 1700 lm typ @ 3000K / Ra90 | 1.4 C/W |
| CM1420 | 20W | 30W | 550mA / 36V | 750mA | 820mA | 2980 lm typ @ 4000K / Ra80; 2620 lm typ @ 3000K / Ra90 | 0.85 C/W |
Features & Advantages
COB LED Features for B2B Lighting Projects
Multiple Power Options
CM1407, CM1412 and CM1420 options cover 7W, 12W and 20W project requirements with the same 1414 platform.
120 Degree Beam Output
Wide COB light emission is suitable for spotlights, downlights, PAR lamps and commercial fixture optical design.
High Reliability Design
The datasheet specifies HBM 4000V ESD sensitivity, 125 C junction temperature and RoHS compliant construction.
Engineering Support
KINGBRIGHT can support model selection, CCT/CRI review, thermal design communication and OEM lighting projects.
Applications
Recommended 1414 COB LED Applications
The CM14XX series is designed for lighting products that need compact COB emission, wide viewing angle and selectable CCT/CRI. Typical use cases include spotlights, downlights, PAR lamps, bulbs, restaurant lights and outdoor landscape lighting.
Datasheet Download
Download the Official CM14XX 1414 COB LED Datasheet
The datasheet includes product coding rules, package dimensions, optical and electrical characteristics, CCT color ranks, packaging specifications and storage / handling precautions.
Process Notes
Packaging, Storage and Handling Guidance
Packaging Label
Labels include product model, lot number, flux/power, voltage/current, CCT/XY, Ra/SD/R9 and quantity.
Moisture Control
Store in a drying cabinet with desiccant at 5 C to 30 C and humidity below 60%RH.
Silicone Surface
Avoid strong pressure on the silicone surface. Use suitable tools and handle from the side surface.
ESD Protection
Operators should use anti-static wrist straps or gloves. Equipment and instruments should be properly grounded.
Thermal Review
COB LEDs require proper heat dissipation design. Confirm substrate, fixture structure and drive current before production.
FAQ
Common Buyer Questions
What is the 1414 COB LED product series?
This page covers the KINGBRIGHT CM14XX 1414 COB LED series, a mirror-aluminum COB LED platform with 13.5 x 13.5 mm substrate size and 11 mm light emitting surface.
Which power options are available?
The datasheet lists CM1407, CM1412 and CM1420 options, corresponding to typical 7W, 12W and 20W COB LED configurations.
What color temperatures can be selected?
The datasheet includes color ranks from 2700K to 6500K, covering warm white, neutral white and cool white commercial lighting needs.
What CRI options are supported?
The product coding rules define Ra70, Ra80, Ra90 and Ra95 options. Final availability should be confirmed with the sales engineer during quotation.
What applications are recommended?
The datasheet recommends spotlights, downlights, PAR lamps, bulbs, restaurant lights and outdoor landscape lighting.
What should engineers review before mass production?
Please confirm CCT, CRI, voltage option, drive current, heat dissipation, soldering process, optical structure and reliability requirements before mass production.
Can KINGBRIGHT provide datasheet and samples?
Yes. Send your target model, power, CCT, CRI, quantity and application details to request datasheet confirmation and sample support.
