LED Indicator Arrays
3mm LED Indicator Arrays for Industrial Control Panels
KINGBRIGHT supplies one-hole, two-hole, three-hole and four-hole LED indicator arrays for PCB-mounted status indication in control cabinets, PLC systems, instrumentation and automation equipment.
Compact Multi-Status LED Display
Black housing, 3mm LED lamps, multiple color combinations and PCB-friendly package options help engineers build clear equipment status displays without using separate discrete indicators.
Product Range
LED Indicator Array Product Series
1 LED position

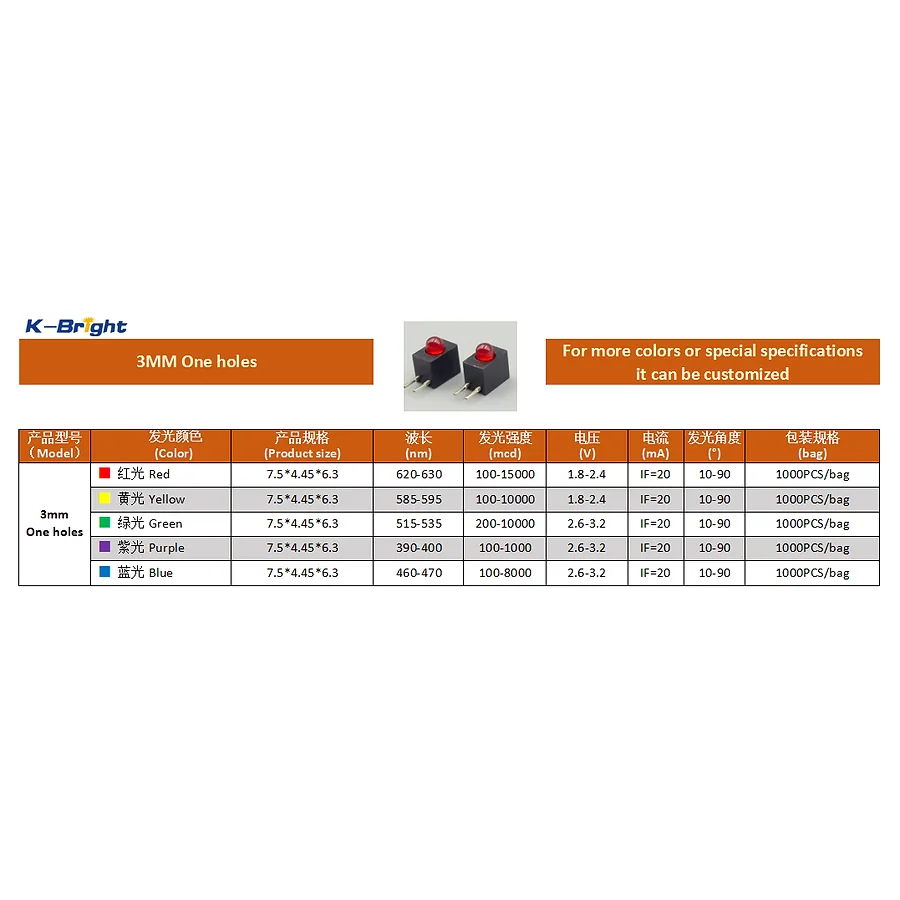

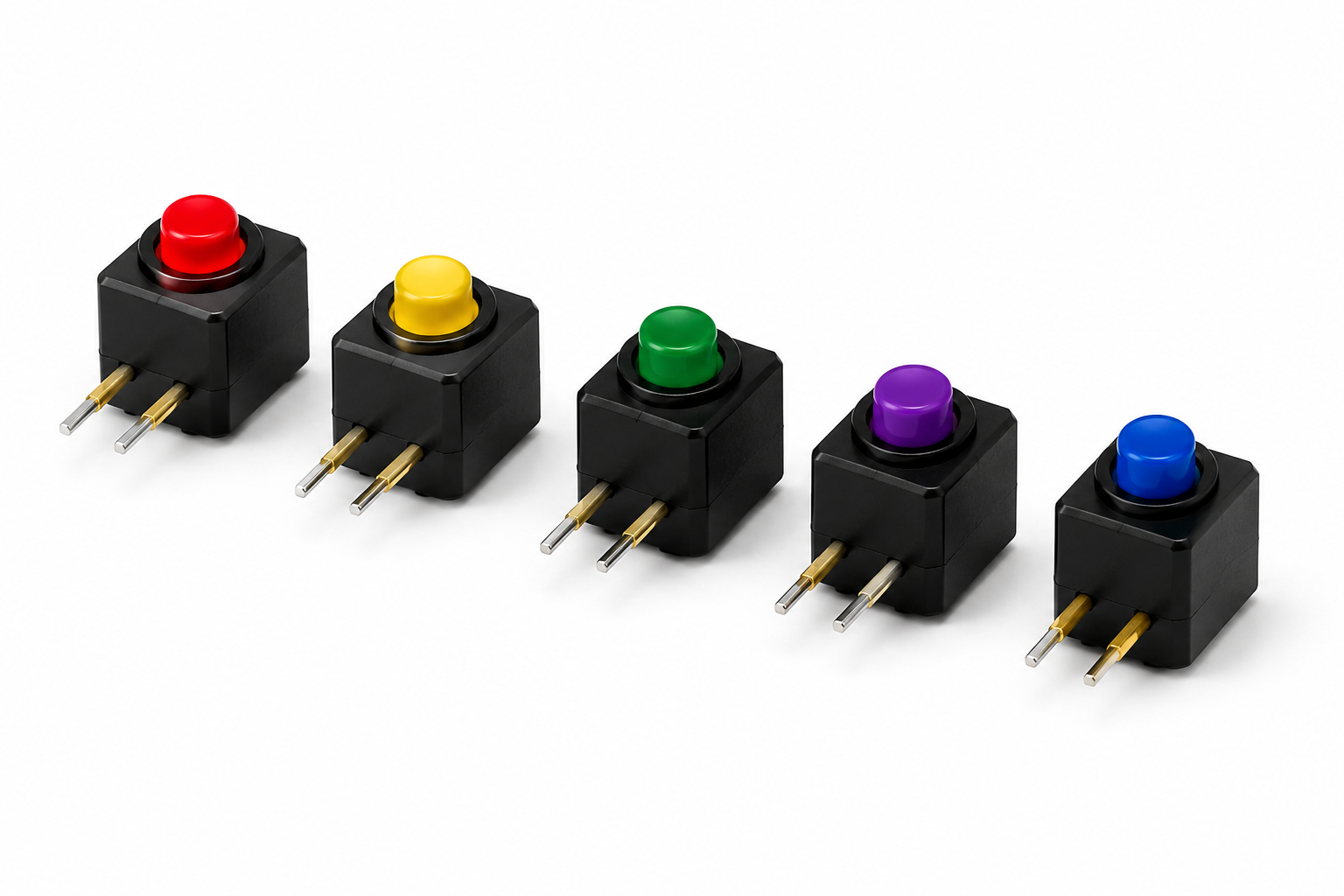

3mm One Hole LED Indicator
Single-position 3mm LED indicator array with black housing for control panels, equipment status indication and PCB-mounted signal display.- 7.5*4.45*6.3
- 10-90 deg
- 1000PCS/bag
2 LED positions

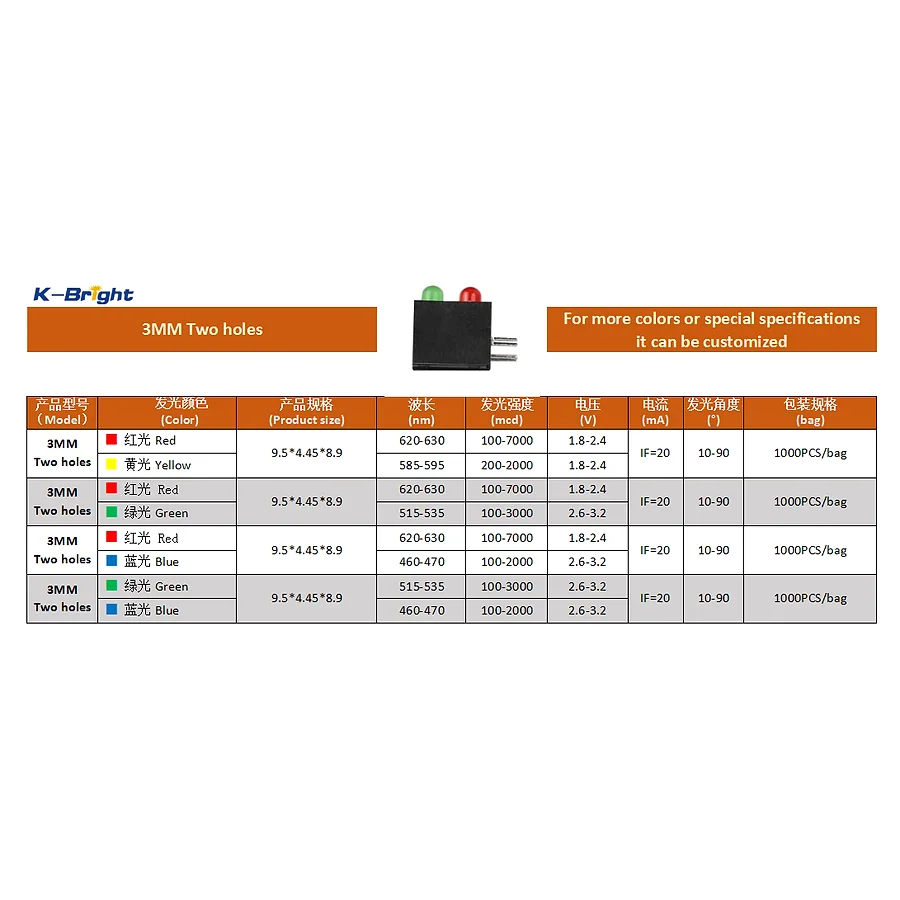

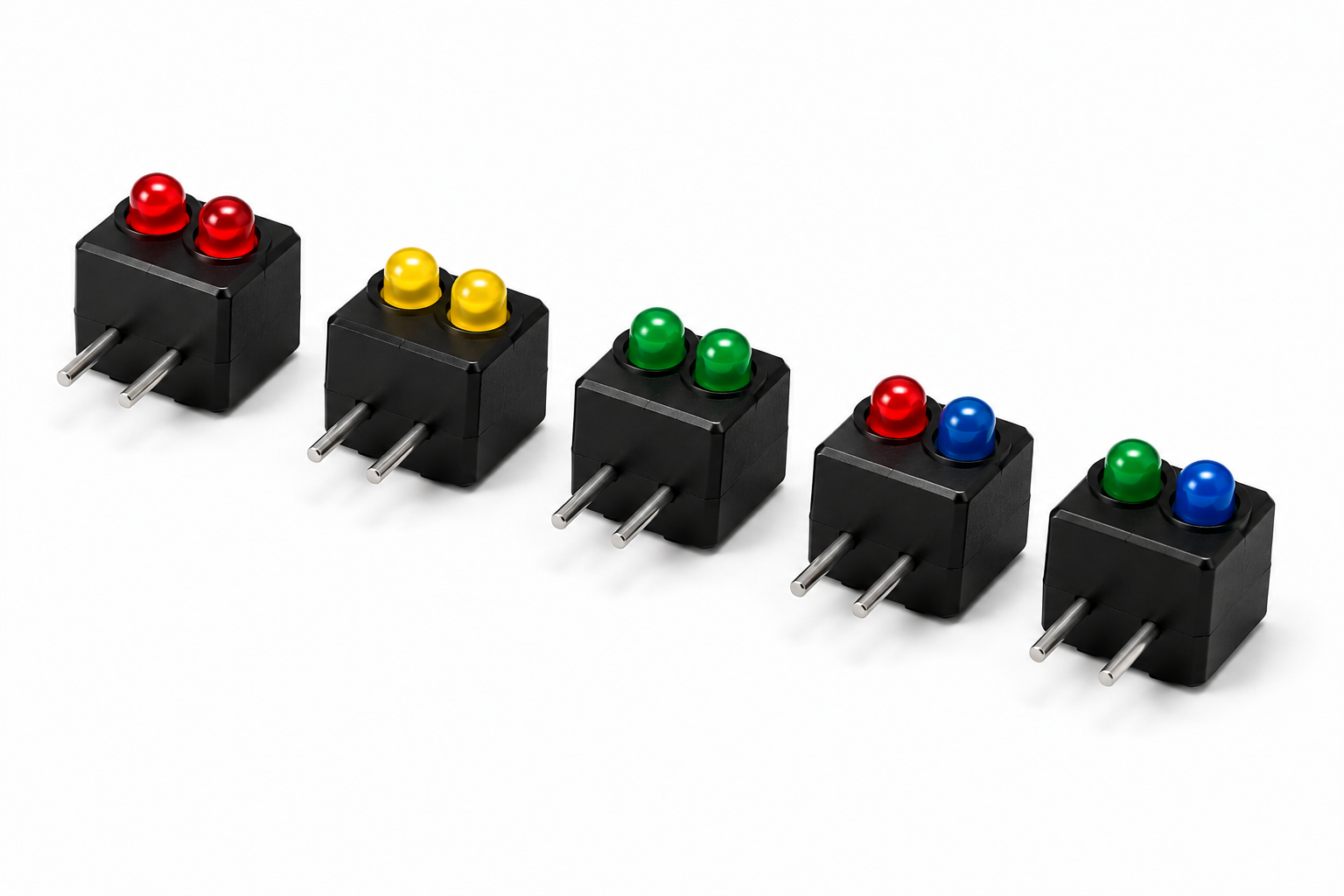

3mm Two Hole LED Indicator
Two-position 3mm LED indicator array for compact multi-status display in PLC equipment, power cabinets and industrial control boards.- 9.5*4.45*8.9
- 10-90 deg
- 1000PCS/bag
3 LED positions

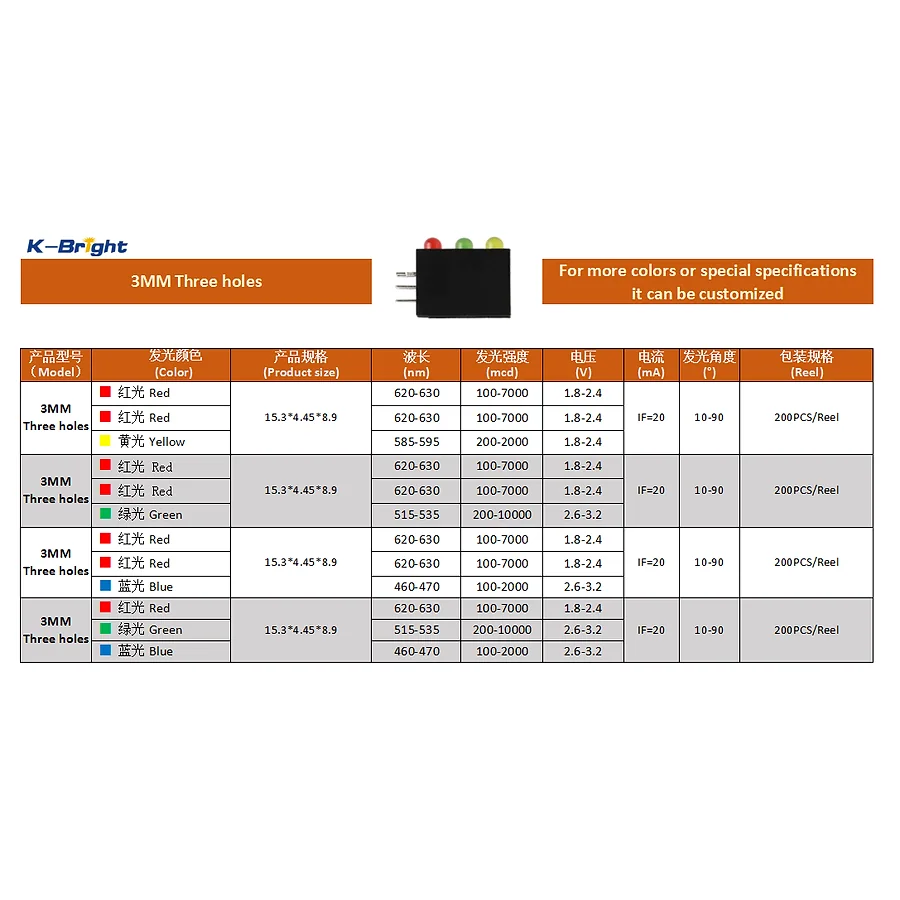

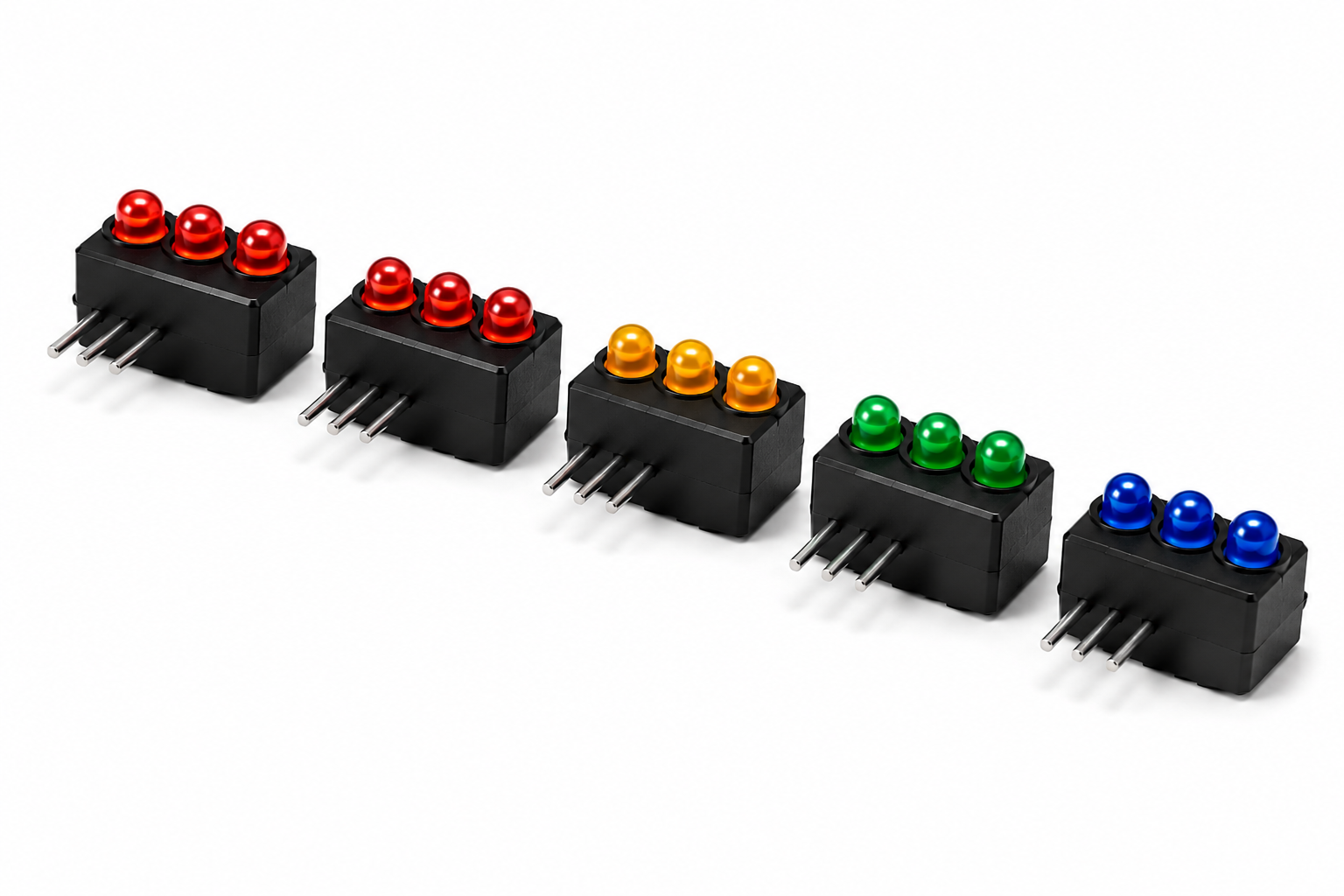

3mm Three Hole LED Indicator
Three-position 3mm LED indicator array for grouped status indication, alarm states and multi-channel equipment feedback.- 15.3*4.45*8.9
- 10-90 deg
- 200PCS/Reel
4 LED positions

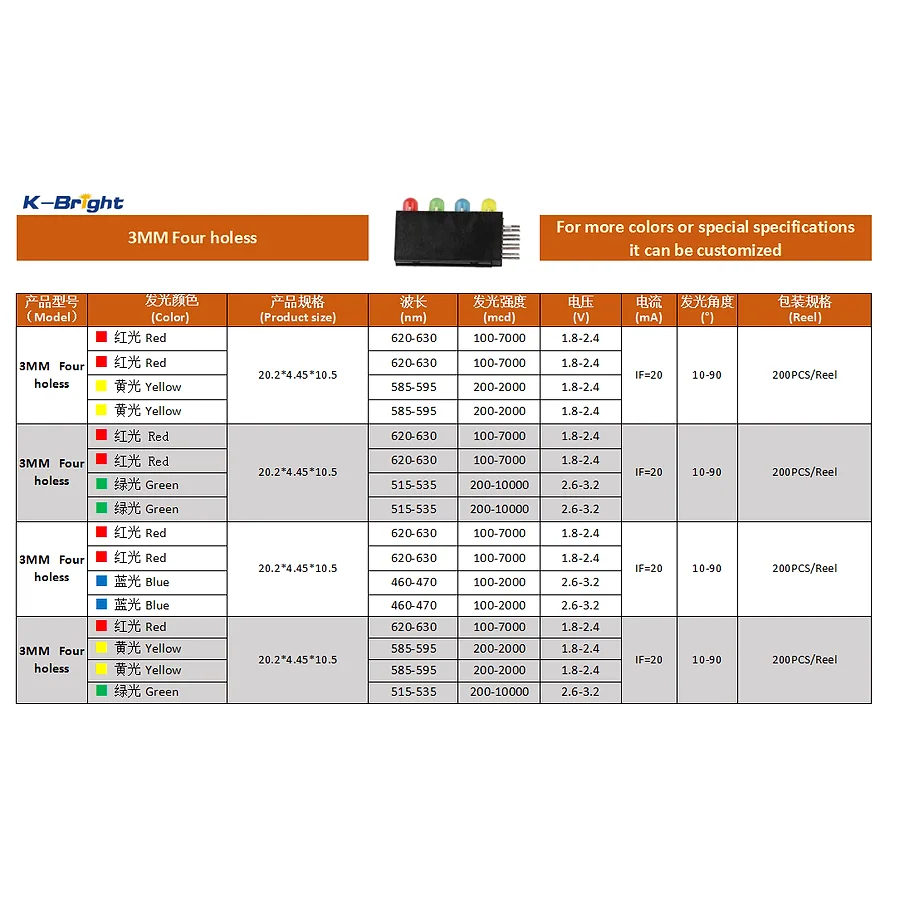

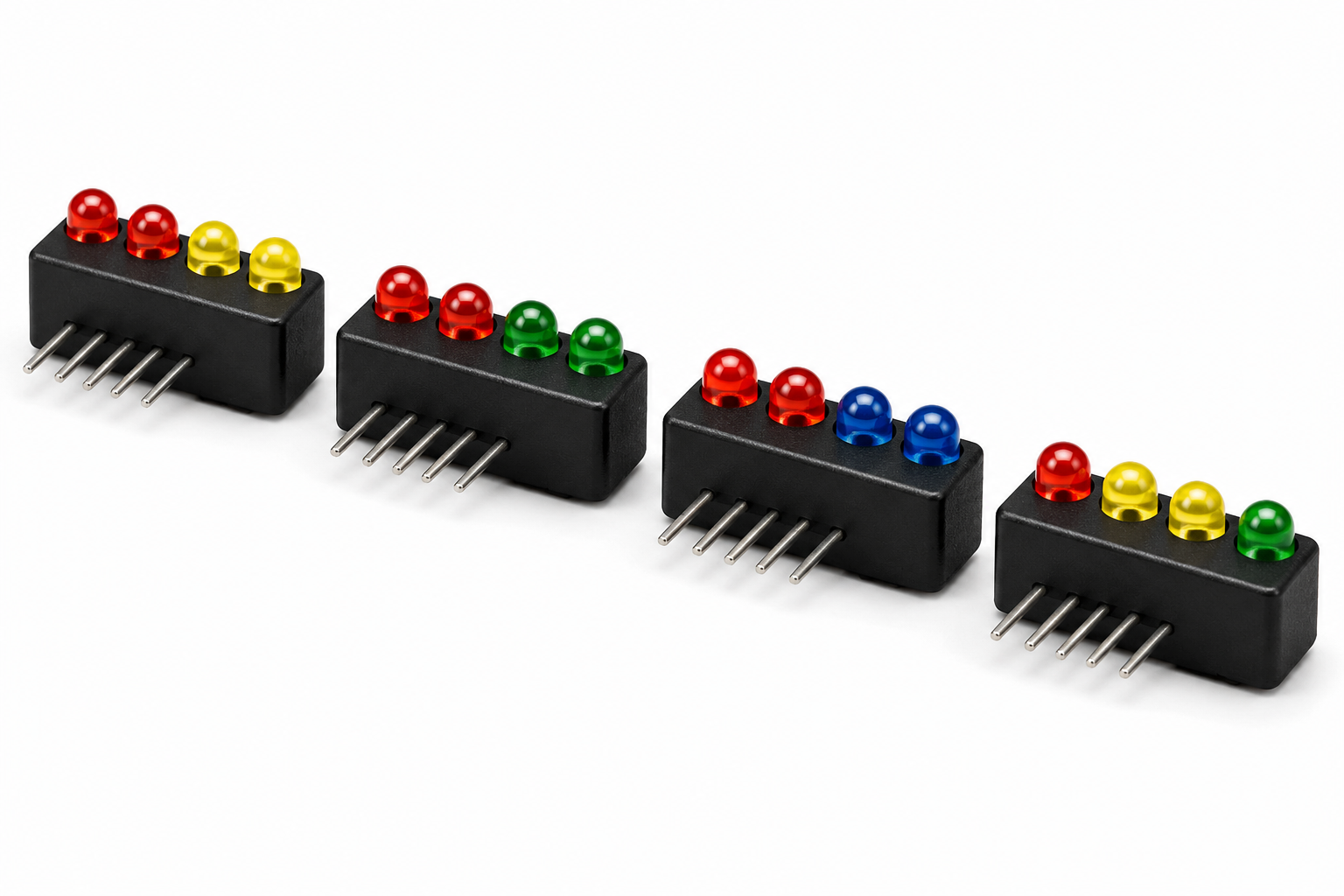

3mm Four Hole LED Indicator
Four-position 3mm LED indicator array for dense status indication in automation equipment, cabinet electronics and instrumentation systems.- 20.2*4.45*10.5
- 10-90 deg
- 200PCS/Reel
Engineering Use
Built for Clear Machine Status Indication
LED indicator arrays are used when engineers need several visible signal points in a compact, repeatable mechanical format. Instead of placing several separate lamps on the PCB, the integrated black housing keeps the LED positions aligned and gives panel builders a cleaner front-view appearance.
The 3mm lamp format is suitable for red, yellow, green, purple and blue status indication. Typical use cases include power, run, fault, communication, charging, alarm and mode indication in export-oriented equipment. Color combinations can be selected according to customer logic and panel labeling.
OEM Project Support
KINGBRIGHT can support color combination review, brightness matching, sample confirmation, export packing communication and PCBA integration discussion for industrial electronics projects.
Applications
Typical Application Areas
Advantages
Why Buyers Choose Indicator Arrays
FAQ
LED Indicator Array Buyer Questions
What is an LED indicator array?
It is a compact PCB-mounted indicator component that combines multiple 3mm LED positions in one black housing for clear equipment status display.
Can the colors be customized?
Standard combinations are listed on each product page. Special color combinations or brightness requirements can be reviewed for OEM projects.
Where are these indicators typically used?
They are commonly used in PLC systems, industrial control panels, power cabinets, instrumentation, alarm systems and automation equipment.
Can KINGBRIGHT provide samples?
Yes. Please send the target model, color combination, quantity, application and shipping details for sample support.
Indicator Array Inquiry
Send Your Panel Indicator Requirement
Share the hole count, color combination, target brightness, PCB layout, annual demand and application. KINGBRIGHT can support quotation, sample arrangement and engineering review.
