Stable Brightness
Mass production bins support consistent luminous flux and color performance.
2835 SMD LED
2835 SMD LED 0.2W for Lighting Replacement and Sign Board Backlight
KINGBRIGHT 2835 SMD LED, code 9.2835XXV22XA_C32_CY, is a high-efficiency 0.2W surface mount LED designed for traditional lighting replacement, ordinary lighting, sign board backlight and architectural decorative lighting.
Code: 9.2835XXV22XA_C32_CYPower: 0.2W / 200mWIF: 60mAVF: 2.6-3.0VCCT: 2700K-6500KCRI: Ra70 / Ra80 / Ra90
Engineering Review
2835 LED Package + Engineering Support
Small package, high efficiency, low-voltage operation, instant light response, long operation life, lead-free and RoHS compliant.
Product Images
2835 SMD LED Photos, Package Views and Application Context

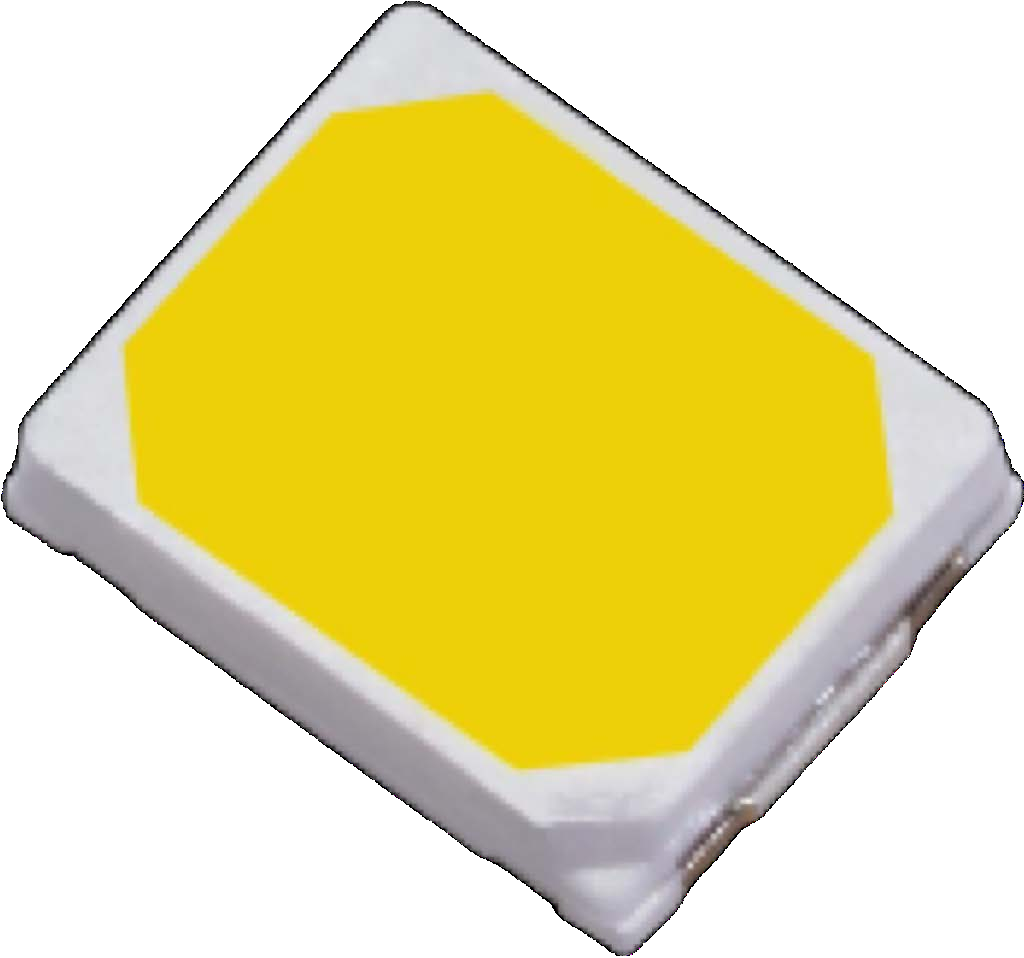

2835 SMD LED Product Appearance
Real 2835 SMD LED package photo for product appearance review.

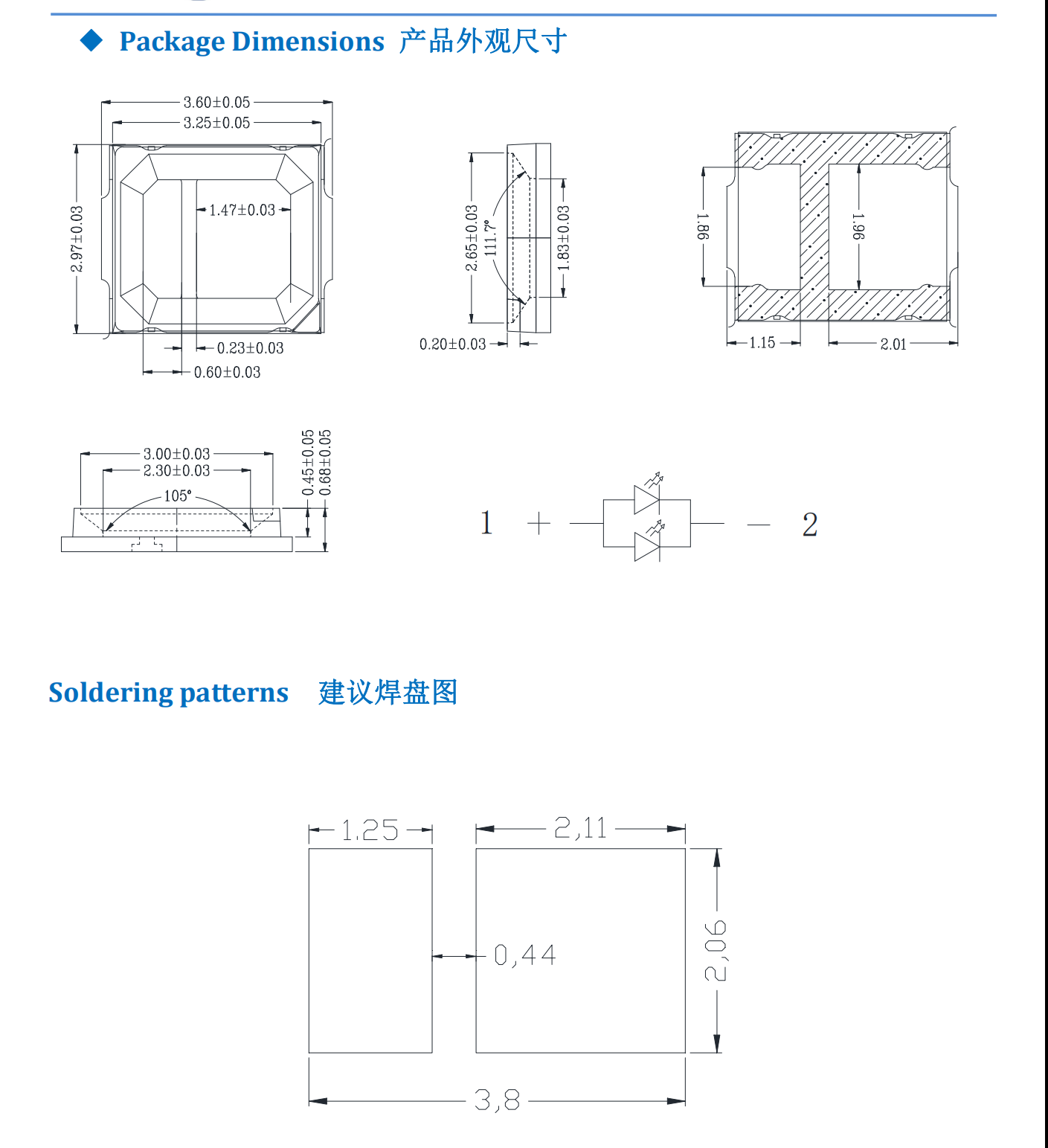

2835 Package Dimensions
Dimension drawing and recommended soldering pattern for engineering review.
Lighting Application Reference
Outdoor lighting application reference for 2835 SMD LED component selection.
Technical Specifications
Real 2835 SMD LED Datasheet Parameters
These values are taken from the KINGBRIGHT 2835 LED specification for mass production supply at TA=25°C. Flux and color values should be confirmed by selected CCT, CRI and bin requirements.
Product Code9.2835XXV22XA_C32_CY
Package Size2835 SMD package, tolerance ±0.15 mm unless otherwise noted
Forward Voltage2.6V min / 3.0V max at IF=60mA
Forward Current60mA rated forward current
Pulse Forward Current72mA max, 10kHz, duty ratio ≤10%
Power Dissipation200mW
Color Temperature2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 5700K / 6500K
Viewing Angle120° at IF=60mA
Luminous Flux29-41 lm range by CCT and CRI bin at IF=60mA
CRIRa70 / Ra80 / Ra90 options
Color ToleranceSDCM ≤ 6 at IF=60mA
Reverse Current≤10 μA at VR=-5V
ESDHBM 2000V
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
Junction Temperature125°C max
Thermal Resistance33°C/W
Soldering Temperature260°C for 10 sec
Packaging4K / 16K pcs per reel, subject to actual packing quantity
Dimensions
2835 Package and Optical Package Reference
The 2835 product family includes standard flat package and ballhead package options. Final dimensions, solder pad information and recommended PCB layout should be confirmed from the official datasheet before PCB design.
Mass Production Bins
CCT, CRI and Luminous Flux Options at IF=60mA
CCT OptionCRILuminous Flux
6500K / 5700K / 5000K / 4500K / 4000KRa7039-41 lm
6500K / 5700K / 5000K / 4500K / 4000KRa8037-39 lm
6500K / 5700K / 5000K / 4500K / 4000KRa9033-35 lm
3500K / 3000KRa7037-41 lm
3500K / 3000KRa8035-37 lm
3500K / 3000KRa9031-33 lm
2700KRa7035-37 lm
2700KRa8033-35 lm
2700KRa9029-31 lm
Features & Advantages
Built for Stable Brightness and Mass Production Consistency
Low Light Decay
Silicone encapsulation and process control support reliable long-term operation.
High Efficiency
0.2W 2835 package delivers up to 41 lm depending on CCT and CRI bin.
Long Lifespan
Designed for operation under rated current, temperature and soldering conditions.
Good Consistency
VF, XY, brightness and Ra bin control helps reduce color and brightness variation.
Applications
Recommended for Lighting Replacement and Backlight Projects
The datasheet recommends this 2835 SMD LED for traditional lighting replacement, ordinary lighting, indoor and outdoor sign board backlight, architectural lighting and decorative lighting.
Datasheet Download
Request the Official 2835 SMD LED Datasheet
The datasheet includes package dimensions, coding rules, electro-optical characteristics, absolute maximum ratings, mass production list, CIE binning, packaging specifications, reflow soldering instructions and handling precautions.
FAQ
Common Buyer Questions
What is the rated current of this 2835 SMD LED?
The rated forward current is IF=60mA. Pulse forward current is 72mA max under 10kHz frequency and duty ratio ≤10%.
What voltage range should engineers design for?
The datasheet lists forward voltage from 2.6V min to 3.0V max at IF=60mA for this 0.2W 2835 LED.
Which CCT and CRI options are available?
Available CCT options include 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K and 6500K. CRI options include Ra70, Ra80 and Ra90.
What luminous flux can buyers expect?
Flux depends on CCT and CRI bin. The mass production list ranges from 29-31 lm for 2700K Ra90 to 39-41 lm for several Ra70 cool/neutral white bins at IF=60mA.
What soldering precautions should be followed?
Reflow soldering should not be performed more than two times. The recommended soldering temperature is 260°C for 10 seconds, and pressure should not be applied to the silicone surface during heating.
How should opened packages be stored?
After opening, soldering should be completed as soon as possible, ideally within 12 hours. Remaining material should be sealed or stored at 5-40°C with humidity no more than 30%.
Is this 2835 LED suitable for flexible light panels?
The datasheet notes that the bracket is PCT material and may break when bent, so it is not suitable for flexible light panel type lamps.
Related Products
Related LED Components for Lighting Projects
020 Mono-Color SMD LEDRequest technical comparison

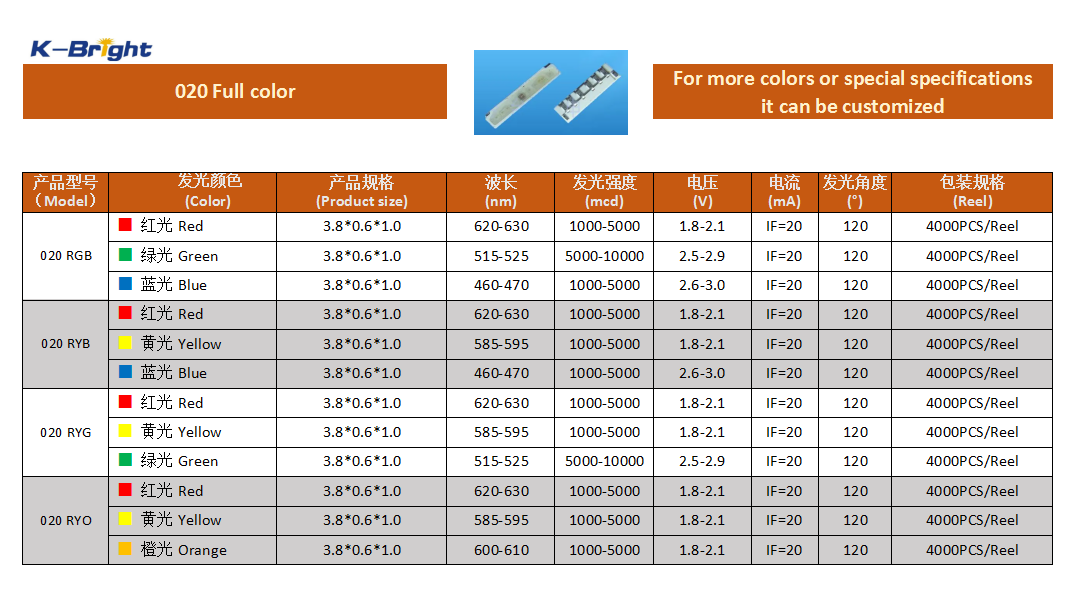

020 Full-Color SMD LEDRequest technical comparison

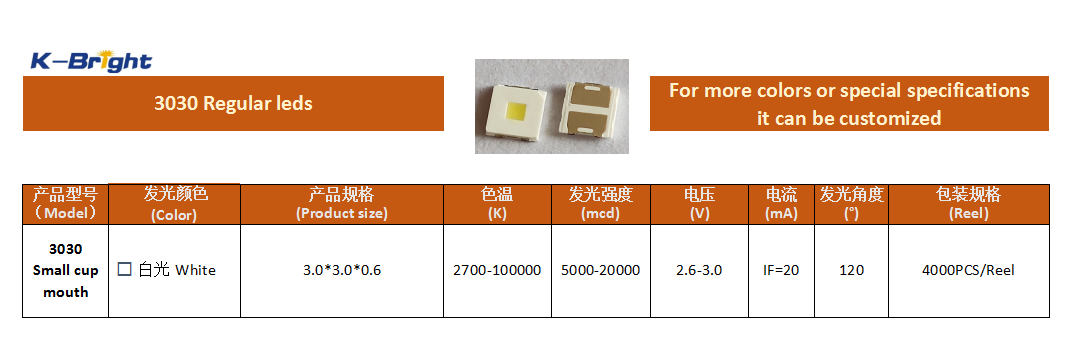

3030 White SMD LEDRequest technical comparison

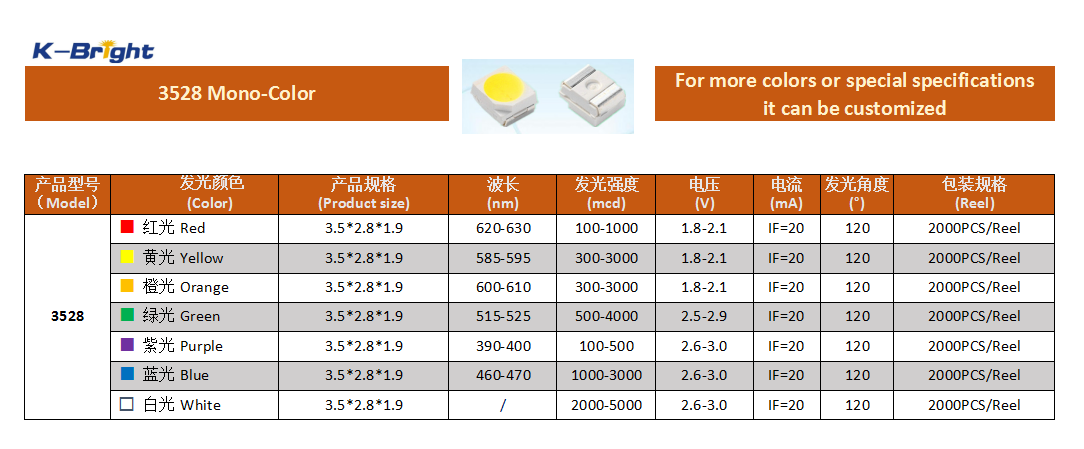

3528 Mono-Color SMD LEDRequest technical comparison
3825 Ballhead SMD LEDRequest technical comparison

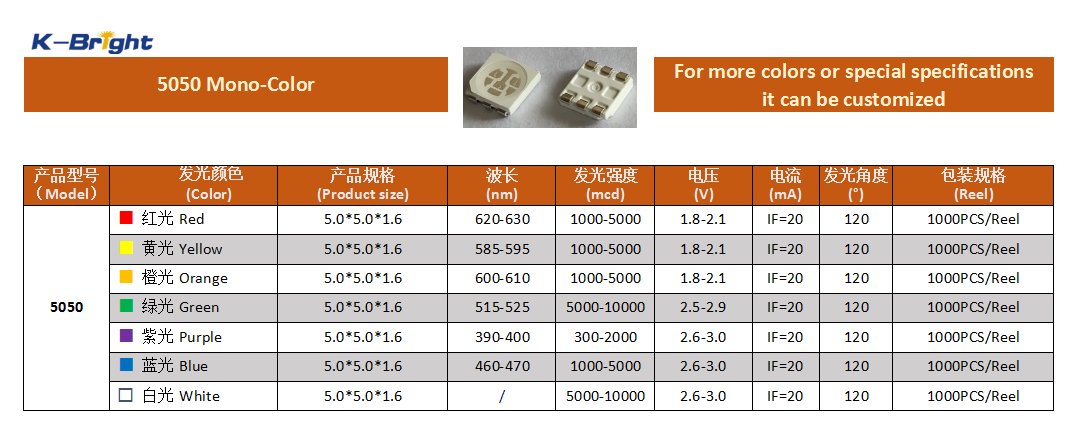

5050 Mono-Color SMD LEDRequest technical comparison

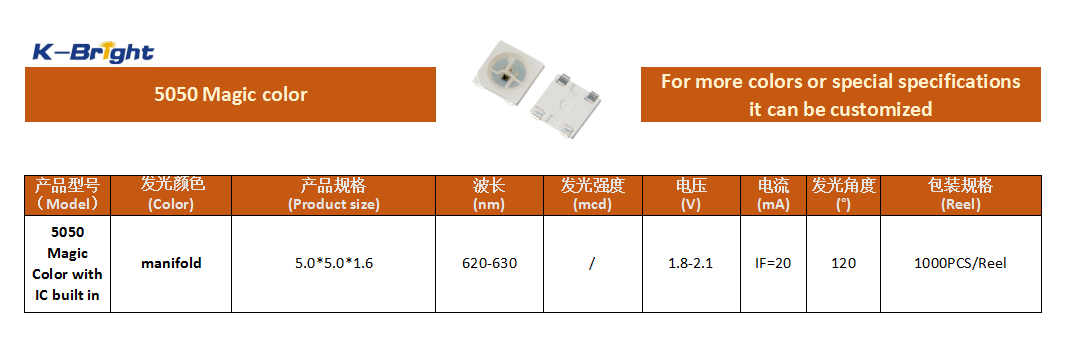

5050 Magic Color SMD LEDRequest technical comparison
