Stable Brightness
Mass production bins support consistent luminous flux and color performance.
3030 SMD LED
3030 6V150mA SMD LED for High Lumen Lighting Projects
KINGBRIGHT 3030 SMD LED, code 9.3030W3V32F, is a 6V high-lumen square-cup surface mount LED with IF=150mA drive current, designed for lighting replacement, ordinary lighting, sign board backlight, solar street lighting and high bay lighting projects.
Code: 9.3030W3V32FRated Power: 1.0WMax Power: 1.5WIF: 150mAVF: 5.8-6.4VCCT: 2700K-6500KCRI: Ra70 / Ra80 / Ra90
Engineering Review
3030 LED Package + Engineering Support
Small package, high efficiency, low-voltage operation, instant light response, long operation life, lead-free and RoHS compliant.
Product Images
3030 SMD LED Photos, Package Views and Application Context

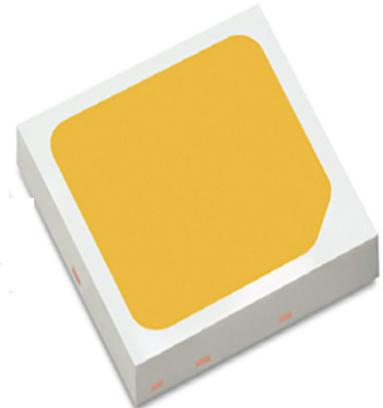

3030 SMD LED Product Appearance
Real 3030 square-cup SMD LED package photo for product appearance review.

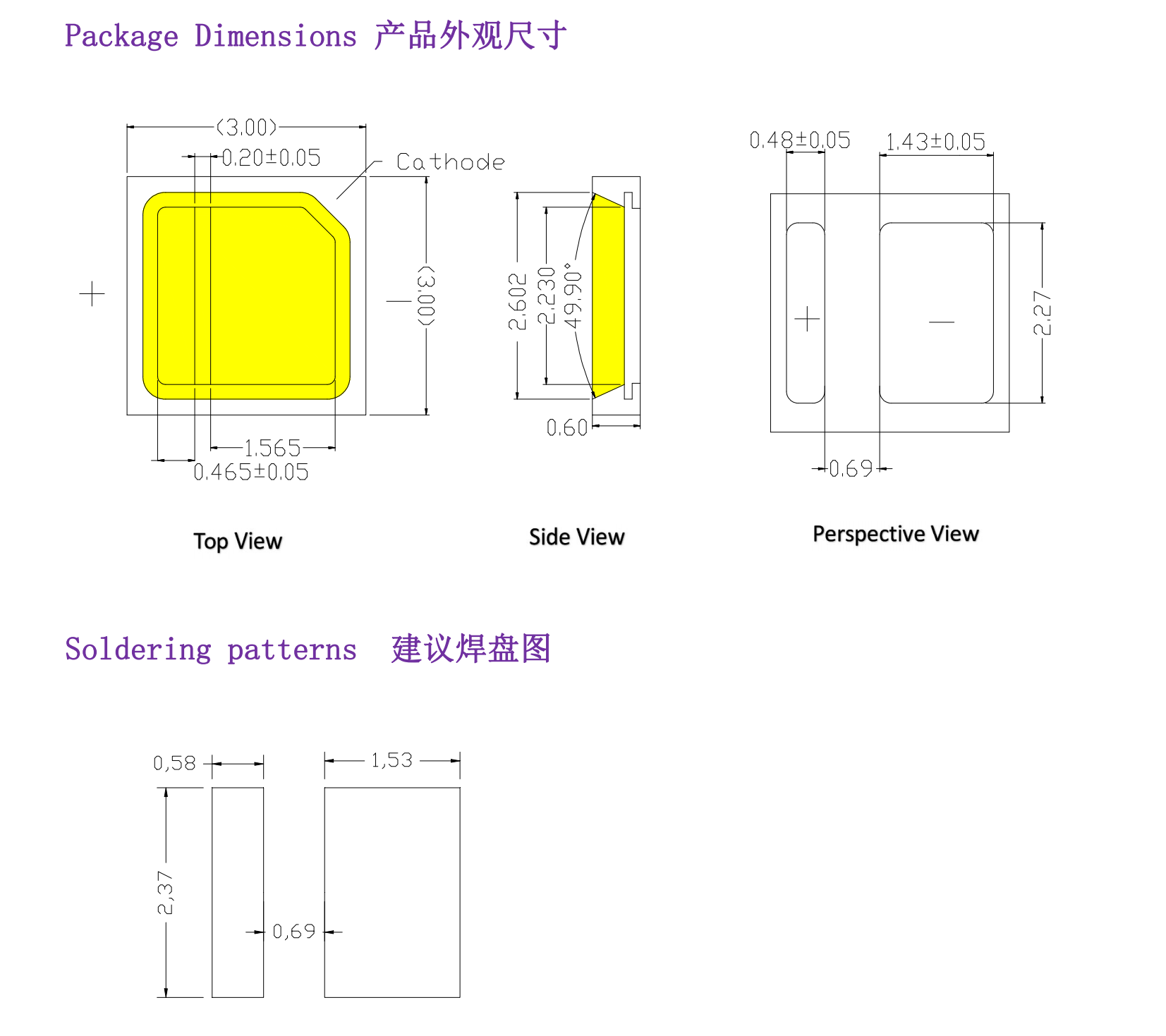

3030 Package Dimensions
Dimension drawing and recommended soldering pattern for engineering review.

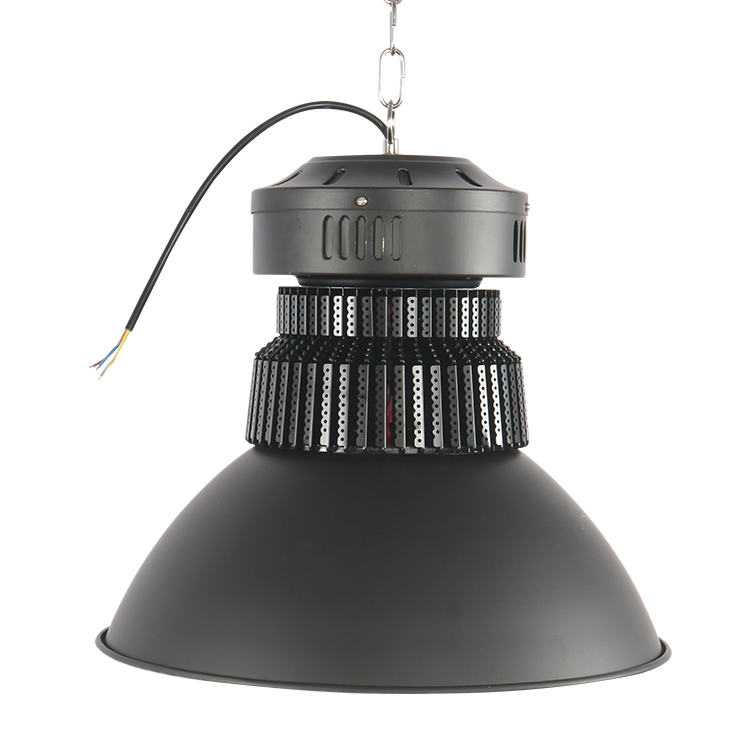

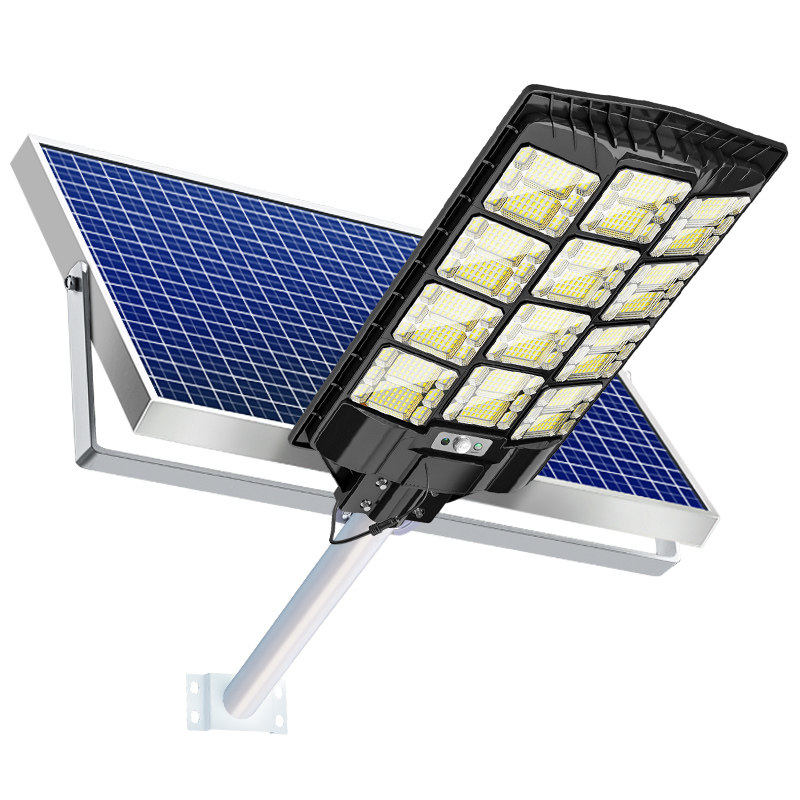

Lighting Application Reference
Outdoor and industrial lighting application reference for 3030 SMD LED component selection.
Technical Specifications
Real 3030 SMD LED Datasheet Parameters
These values are taken from the KINGBRIGHT 3030 6V150mA LED specification for mass production supply at TA=25 C. Flux and color values should be confirmed by selected CCT, CRI and bin requirements.
Product Code9.3030W3V32F
Code Structure9.3030XXV32XC-HC4-XX series, 3030 package, 6V class, 2 chips, Ra70/Ra80/Ra90 options
Package Size3.0 x 3.0 x 0.6 mm, tolerance +/-0.15 mm unless otherwise noted
Forward Voltage5.8V min / 6.4V max at IF=150mA
Forward Current150mA rated forward current
Maximum Operating Current240mA max operating current
Pulse Forward Current180mA max, 10kHz frequency, duty ratio <=10%
Power Dissipation1000mW / 1.0W rated power
Maximum Power1.5W max power
Color Temperature2700K / 3000K / 3500K / 4000K / 4500K / 5000K / 5700K / 6500K
Viewing Angle120 degrees at IF=150mA
Luminous Flux105-165 lm range by CCT and CRI bin at IF=150mA
CRIRa70 / Ra80 / Ra90 options
Color ToleranceSDCM <=6 at IF=150mA
ESDHBM 2000V
Operating Temperature-40 C to +85 C
Storage Temperature-40 C to +85 C
Junction Temperature125 C max
Thermal Resistance18 C/W
Reverse Voltage10V
Soldering Temperature260 C for 10 sec
PackagingTape and reel packaging; label includes part number, lot number, IV, VF/IF, CCT/XY, Ra/SD/R9, quantity, date and code
Dimensions
3030 Square-Cup Package and Solder Pad Reference
The 3030 product family uses a compact square-cup SMD package for high-lumen lighting projects. Final dimensions, solder pad information and recommended PCB layout should be confirmed from the official datasheet before PCB design.
Mass Production Bins
CCT, CRI and Luminous Flux Options at IF=150mA
CCT OptionCRILuminous Flux
6500K / 5700K / 5000K / 4000KRa70155-165 lm
6500K / 5700K / 5000K / 4000KRa80145-155 lm
6500K / 5700K / 5000K / 4000KRa90125-135 lm
3500K / 3000KRa70145-155 lm
3500K / 3000KRa80135-145 lm
3500K / 3000KRa90115-125 lm
2700KRa70135-145 lm
2700KRa80125-135 lm
2700KRa90105-115 lm
Features & Advantages
Built for Stable Brightness and Mass Production Consistency
Low Light Decay
Silicone encapsulation and process control support reliable long-term operation.
High Efficiency
3030 6V package delivers up to 155-165 lm depending on CCT and CRI bin.
Long Lifespan
Designed for operation under rated current, temperature and soldering conditions.
Good Consistency
VF, XY, brightness and Ra bin control helps reduce color and brightness variation.
Applications
Recommended for High Lumen Lighting and Backlight Projects
The datasheet recommends this 3030 SMD LED for traditional lighting replacement, ordinary lighting, indoor and outdoor sign board backlight, architectural lighting and decorative lighting. Its 6V high-lumen output also supports solar street lights, high bay lights and ceiling lighting projects.
Datasheet Download
Request the Official 3030 SMD LED Datasheet
The datasheet includes package dimensions, coding rules, electro-optical characteristics, absolute maximum ratings, mass production list, CIE binning, packaging specifications, reflow soldering instructions and handling precautions.
Packaging & Reflow
Tape-and-Reel Packaging and Pb-Free Reflow Profile
Packaging Information
Tape-and-reel packaging is used for SMT assembly. Labels include part number, lot number, IV, VF/IF, CCT/XY, Ra/SD/R9, quantity, date and code.
Reflow Profile
Pb-free SnAgCu assembly profile with 245-260 C peak temperature and 10-30 seconds within 5 C of peak.
Thermal Control
Ramp-up and ramp-down rates should be controlled according to the datasheet profile to protect LED package reliability.
Moisture Handling
After opening, soldering should be completed quickly. Remaining material should be sealed or stored under controlled humidity.
Engineering Review
Confirm solder pad design, thermal path, bin selection and application temperature before mass production.
FAQ
Common Buyer Questions
What is the rated current of this 3030 SMD LED?
The rated forward current is IF=150mA. Maximum operating current is 240mA, and pulse forward current is 180mA max under 10kHz frequency and duty ratio <=10%.
What voltage range should engineers design for?
The datasheet lists forward voltage from 5.8V min to 6.4V max at IF=150mA for this 6V 3030 LED.
Which CCT and CRI options are available?
Available CCT options include 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K and 6500K. CRI options include Ra70, Ra80 and Ra90.
What luminous flux can buyers expect?
Flux depends on CCT and CRI bin. The mass production list ranges from 105-115 lm for 2700K Ra90 to 155-165 lm for several Ra70 cool/neutral white bins at IF=150mA.
What soldering precautions should be followed?
The Pb-free reflow profile lists a 245-260 C peak temperature, 10-30 seconds within 5 C of peak, and total process time up to 480 seconds from 25 C to peak.
What packaging information is shown on the label?
The label includes part number, lot number, luminous flux bin, VF/IF, CCT/XY, Ra/SD/R9, quantity, date and code for production traceability.
How should opened packages be stored?
After opening, soldering should be completed as soon as possible, ideally within 12 hours. Remaining material should be sealed or stored at 5-40°C with humidity no more than 30%.
What applications are recommended for 3030 SMD LED?
The datasheet recommends traditional lighting replacement, ordinary lighting, indoor and outdoor sign board backlight, architectural lighting and decorative lighting. It is also suitable for high-output lighting projects after thermal review.
