Infrared LED Components
Infrared LED Series for Sensing, Transmission and Optical Detection
KINGBRIGHT supplies chip, SMD, DIP, paired transmitter and receiver, reflective sensor and long wavelength infrared LED series for remote control, photoelectric sensing, smart devices and industrial electronics.
850nm / 940nm / 1400-1600nm Options
Select IR components by package type, wavelength, optical power, current range, viewing angle and packaging method using the specification tables converted from the supplied product files.
Product Series
Infrared LED Product Series
400-1100 nm

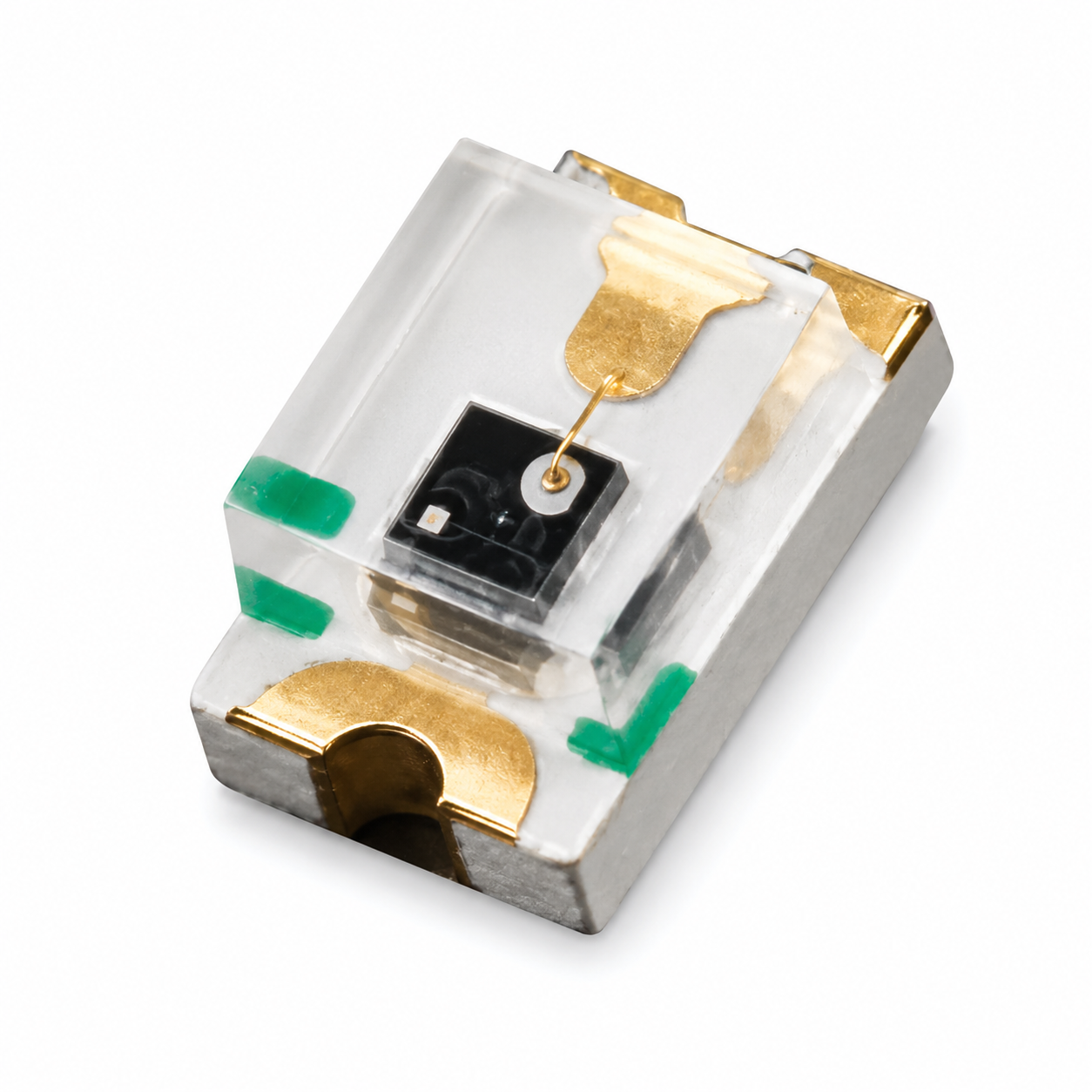

Chip IR Series
Chip infrared transmitting and receiving series for compact PCB sensing, miniature photoelectric detection and space-limited IR electronics.- 1.6*0.8 to 3.5*2.8
- 20mA
- 2000-3000PCS/Reel
850 / 940 nm

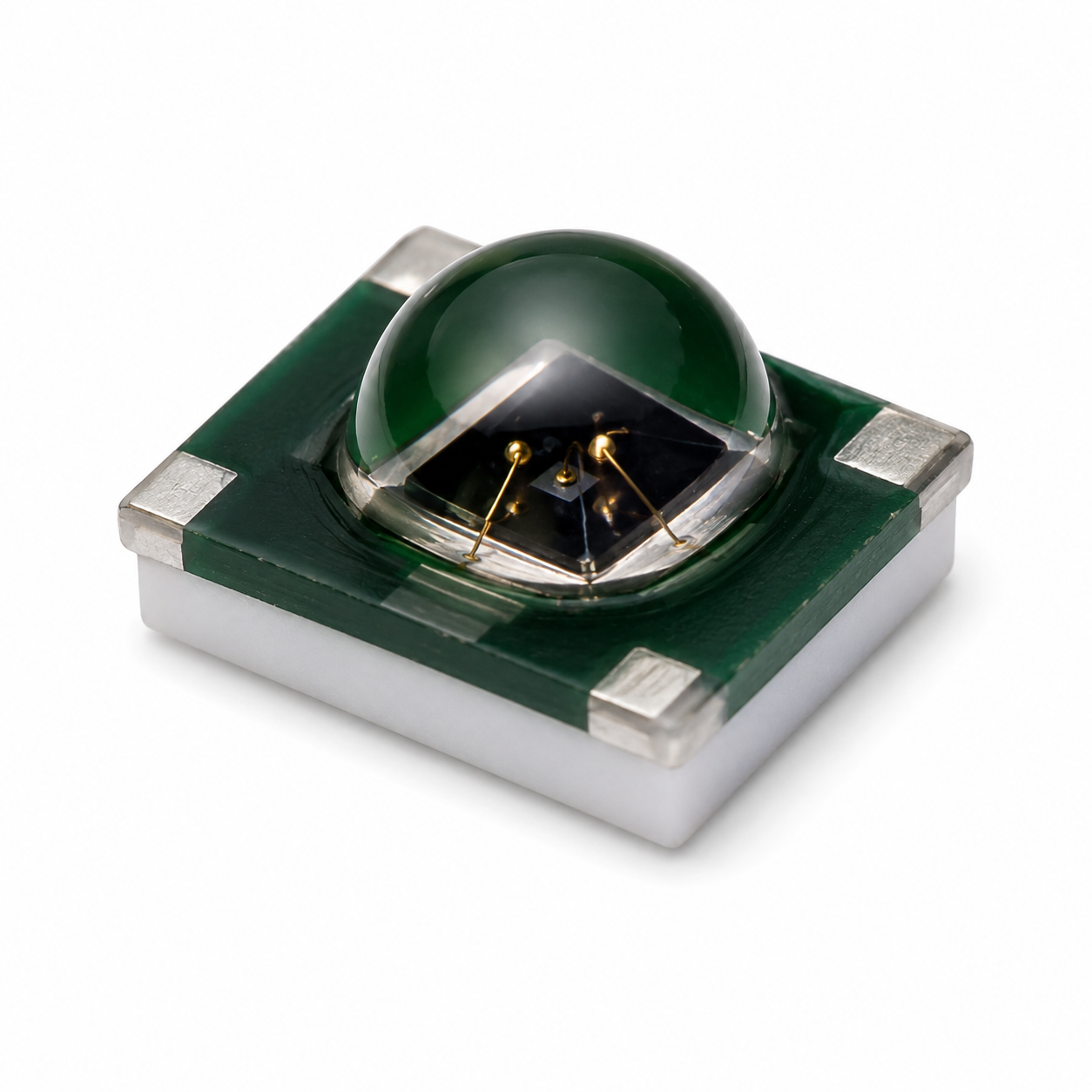

SMD IR Transmitting & Receiving Series
SMD infrared transmitting and receiving series for high-volume SMT assembly, sensing modules, IR illumination and compact electronics.- 2.8*3.5 to 5.0*5.0
- 500-1500mA
- 1000-3000PCS/Reel
850 / 940 nm

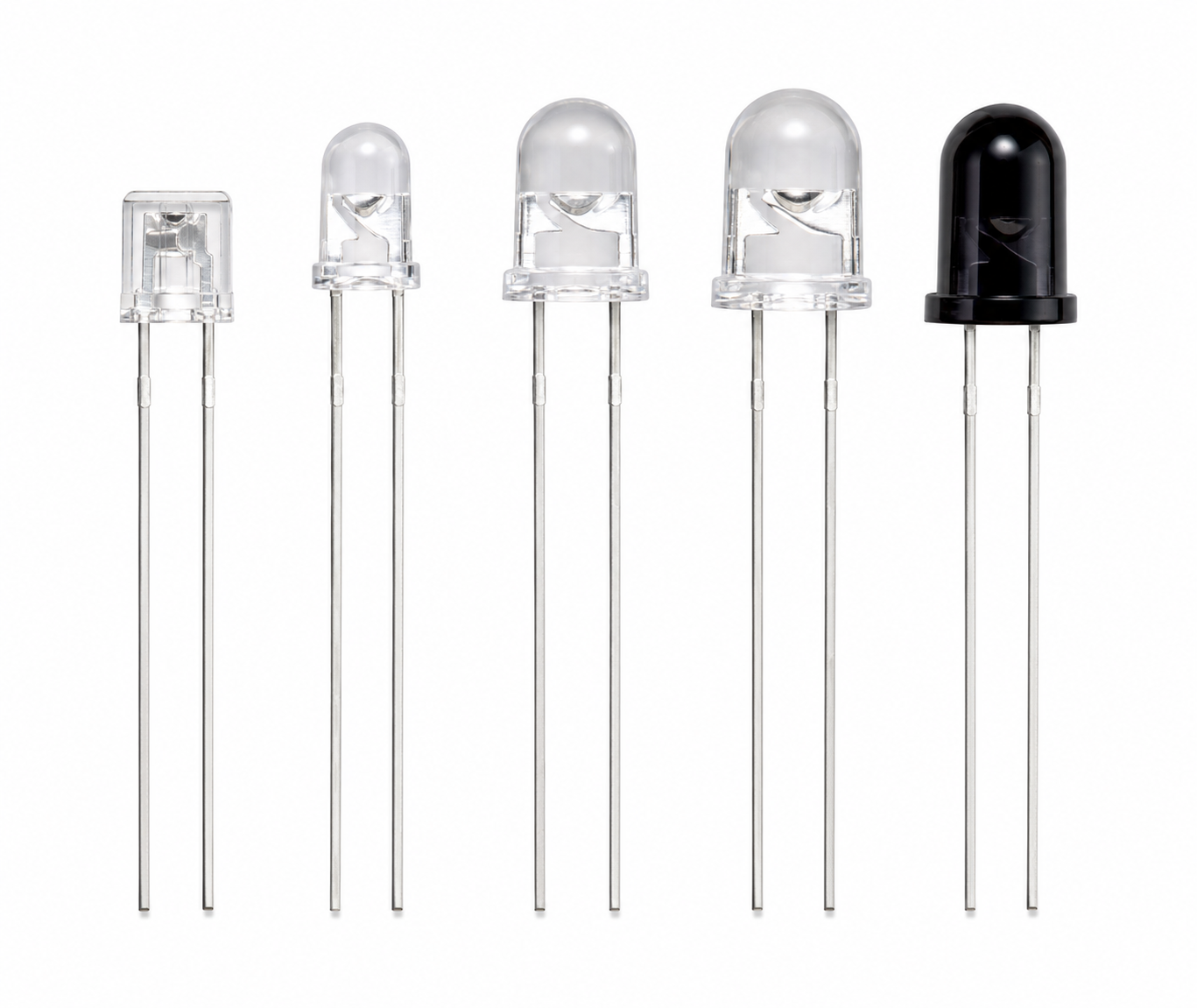

DIP IR Transmitting & Receiving Series
DIP infrared transmitting and receiving series for through-hole sensing, remote control, industrial electronics and stable PCB mounting.- F3 / F5
- 20-100mA
- 1000PCS/bag
850-1100 nm

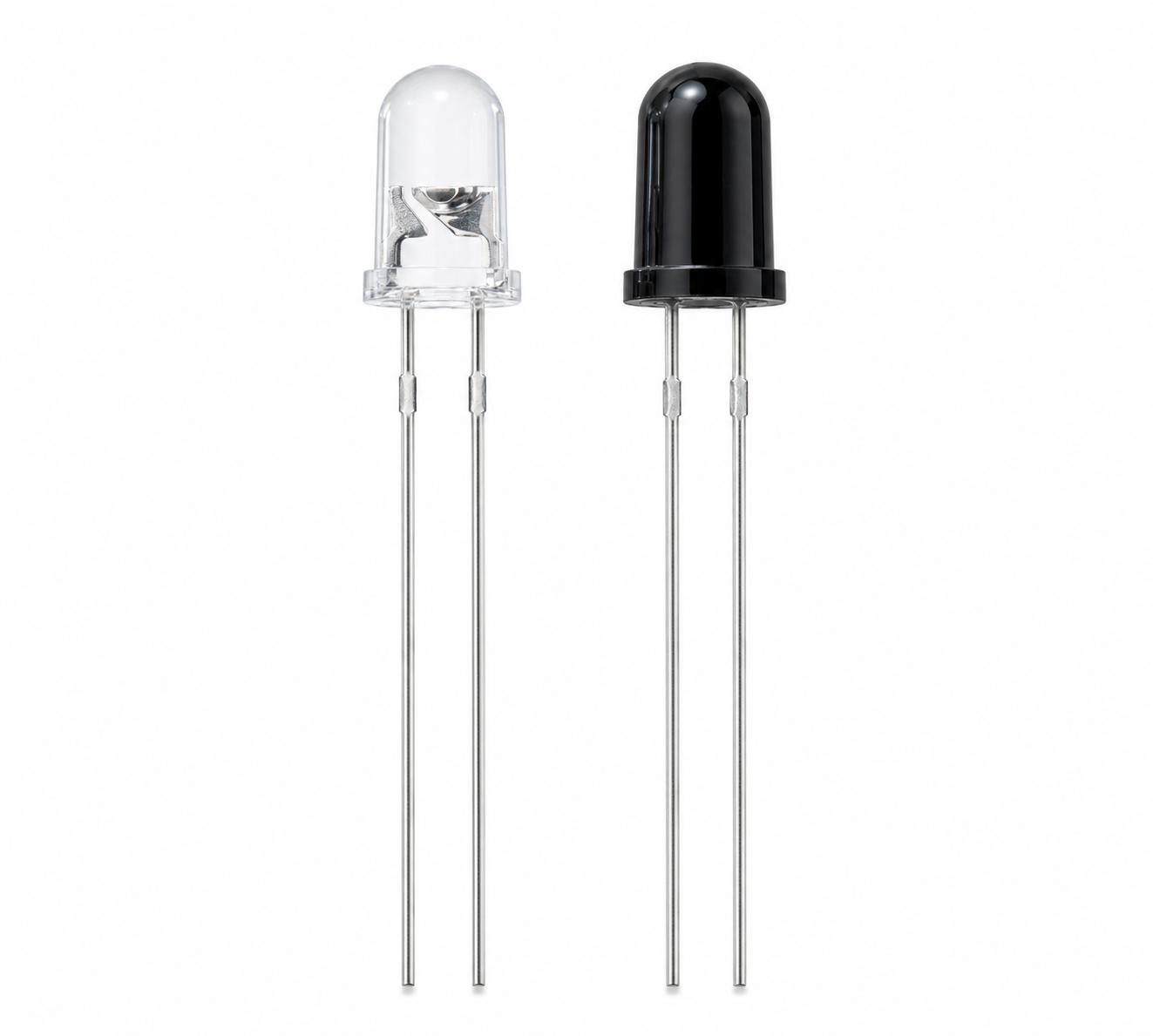

IR Transmitter & Receiver Pair Series
Matched through-hole infrared transmitter and receiver pair series for optical detection, interrupter circuits and paired sensing applications.- F3 / F5
- 20-100mA
- 1000PCS/bag
940 nm

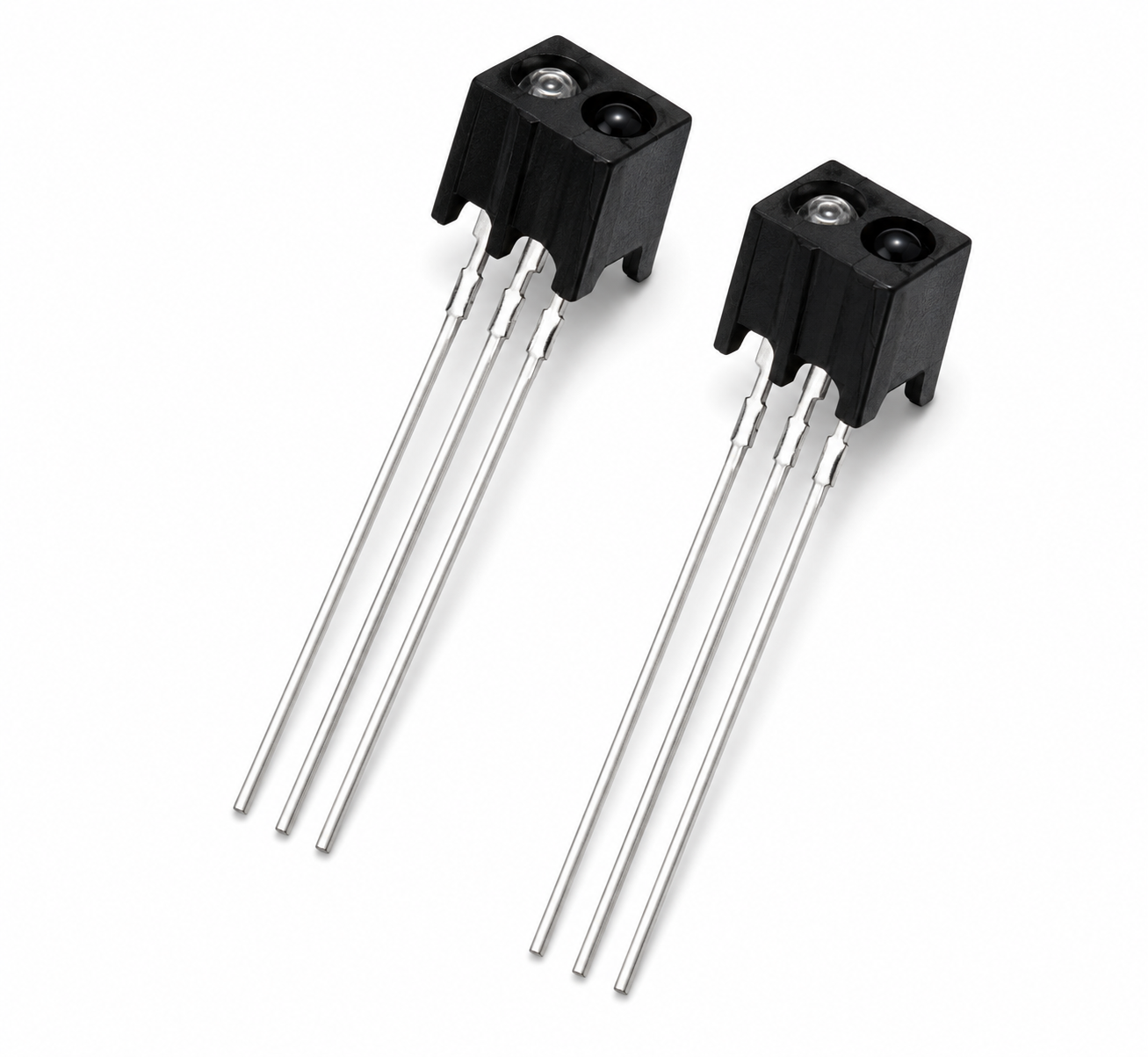

Reflective IR Sensor Series
Reflective infrared sensor series integrating IR emission and sensing for object detection, proximity sensing and control electronics.- 6.5*6.4
- 20-50mA
- 1000PCS/bag
1400-1600 nm

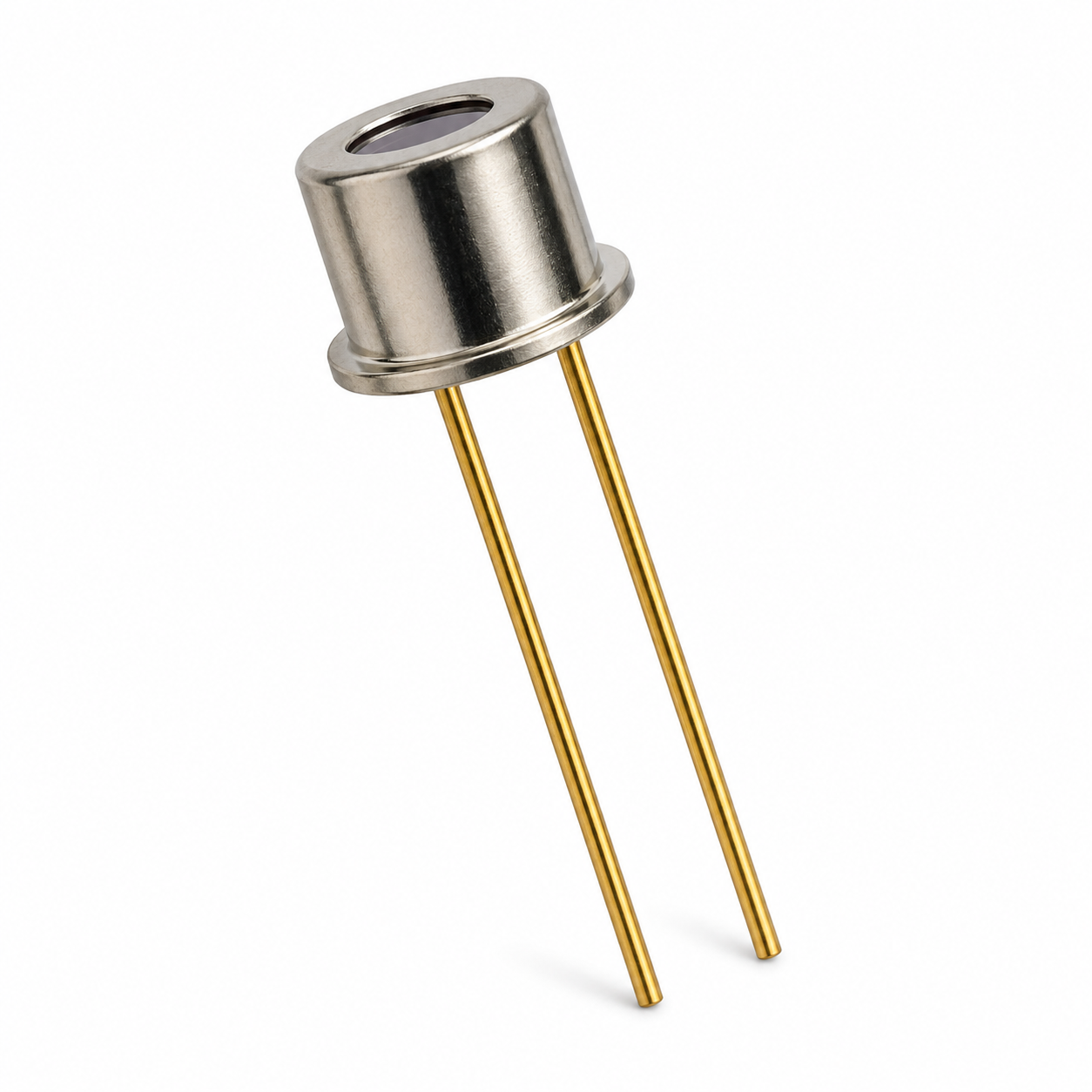

Long Wavelength Infrared Series
Long wavelength infrared transmitting and receiving series for 1400-1600nm sensing projects and special optical detection applications.- 4.65*3.0
- 50-100mA
- 1000PCS/bag
Engineering Use
IR Components for Transmission and Detection
Infrared LED components are used when equipment needs invisible or low-visible optical transmission, reflective sensing, remote control signaling or paired emitter and receiver detection. The series pages group models by package and application style so engineers can compare wavelength, power, voltage, current and viewing angle without opening separate model pages.
The supplied specification data covers compact chip packages, higher-power SMD packages, through-hole DIP emitters, matched transmitter and receiver options, reflective IR sensors and long wavelength infrared components. For special wavelengths, optical power targets or customized sensing structures, KINGBRIGHT can review the project requirement before quotation and sample arrangement.
OEM Selection Support
Share wavelength, package, drive current, detection distance, lens angle, annual demand and application environment. KINGBRIGHT can help match the right infrared LED series for your electronics project.
Applications
Typical Application Areas
Advantages
Why Buyers Use KINGBRIGHT IR LEDs
Infrared LED Inquiry
Send Your IR LED Requirement
Send the target wavelength, package size, optical power, current, viewing angle, quantity and application. Our sales engineer can support quotation, datasheet confirmation and sample arrangement.
