UV LED / UVA LED
UVA LED Series Manufacturer
3535 UVA LED products for 365-400nm ultraviolet curing, fluorescence detection, inspection equipment and OEM UV electronics.
Technical Introduction
What Is UVA LED?
UVA LEDs emit ultraviolet light in the near-UV range and are commonly used for UV curing, fluorescence excitation, inspection, counterfeit detection and specialty lighting. KINGBRIGHT 3535 UVA LEDs provide 365-380nm and 380-400nm wavelength options in plane and ball-head package styles for engineers who need compact SMT UV LED components with stable output.
UV LED selection depends on wavelength, radiant power, forward voltage, drive current, viewing angle, thermal design and the required sterilization LED or UV curing application. The table below keeps model, part number and electrical data visible for purchasing and engineering review.
Product Name and Model List
- 3535 UVA Plane

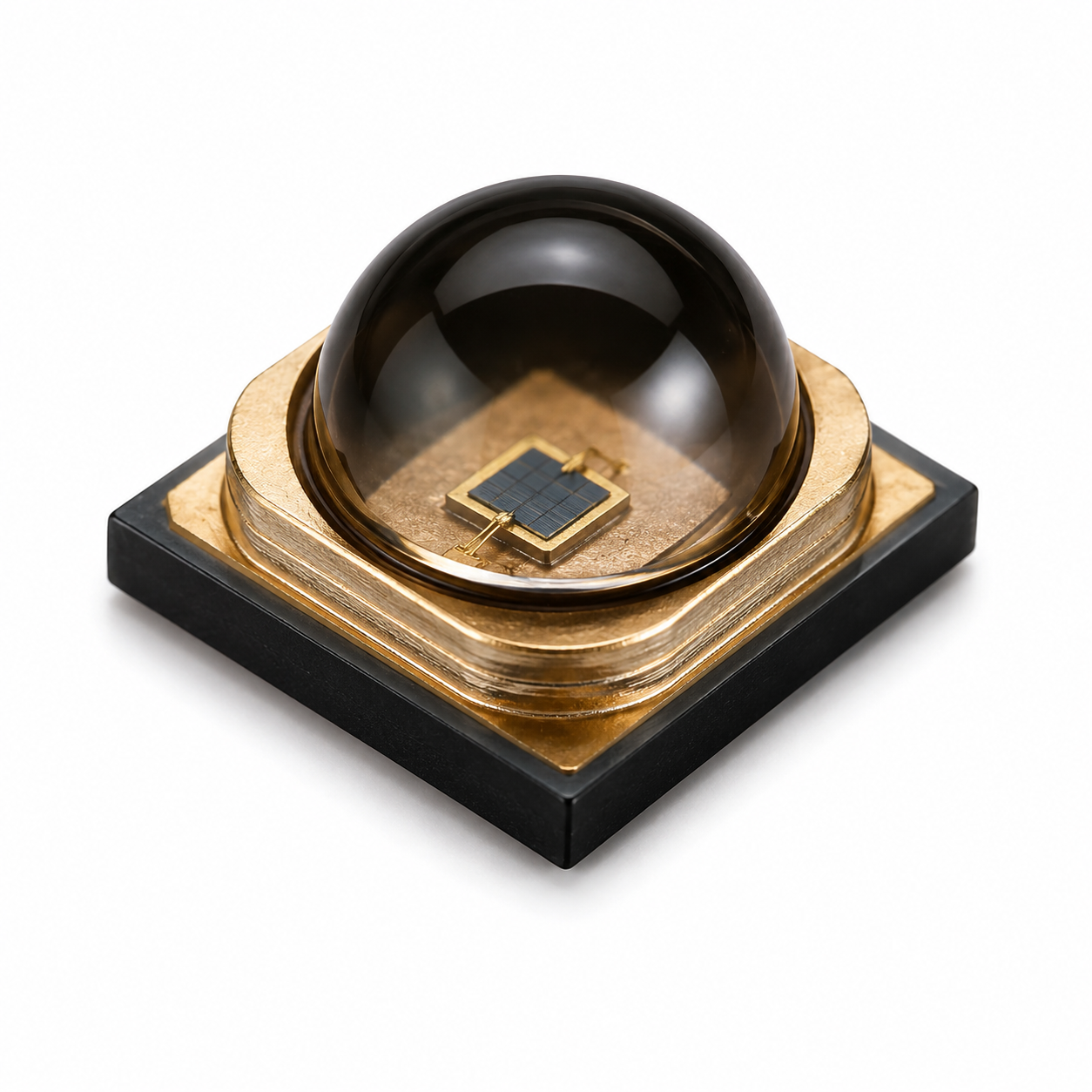

- 3535 UVA Ball Head
Product Photos
UVA LED Series Product Image Gallery
Specification Table
UVA LED Series Electrical and Optical Data
| Product | Model | Part No | Product Size | Wavelength (nm) | Radiant Power (mW) | Voltage (V) | Current (mA) | Angle | Reel |
|---|---|---|---|---|---|---|---|---|---|
| 3535 UVA Plane | 3535 UVA | KB-3535.365 | 3.6*3.6 | 365-380 | 800-1200 | 3.4-3.8 | IF=700 | 120 deg | 1000PCS/Reel |
| 3535 UVA Plane | 3535 UVA | KB-3535.395 | 3.6*3.6 | 380-400 | 800-1200 | 3.4-3.8 | IF=700 | 120 deg | 1000PCS/Reel |
| 3535 UVA Ball Head | 3535 UVA | KB-3535.365 | 3.6*3.6 | 365-380 | 800-1200 | 3.4-3.8 | IF=700 | 120 deg | 1000PCS/Reel |
| 3535 UVA Ball Head | 3535 UVA | KB-3535.395 | 3.6*3.6 | 380-400 | 800-1200 | 3.4-3.8 | IF=700 | 120 deg | 1000PCS/Reel |
Applications
UV LED Application Scenarios
Engineering Review
Send wavelength, target radiant power, package, lens style, drive current, working distance and module structure. KINGBRIGHT can support UV LED selection for sterilization LED, curing, inspection and OEM projects.
Related UV LED Series
Compare UV LED Options
UVC LED Series
UVC + UVA LED SeriesUV LED Inquiry
Request UVA LED Series Quotation and Samples
Share your model, wavelength, optical power, lens type, sample quantity, annual demand and application. We can support quotation, sample arrangement and UV LED technical review.
