UV LED / UVC + UVA LED
UVC + UVA LED Series Manufacturer
Dual wavelength 3535 UVC+UVA LED products for UV sterilization modules, auxiliary UVA output and compact OEM UV electronics.
Technical Introduction
What Is UVC + UVA LED?
UVC+UVA LEDs combine deep-UV sterilization wavelengths with near-UV auxiliary output in one product family. The UVC channel supports disinfection-focused designs, while the UVA channel can support complementary activation, monitoring or application-specific UV response. KINGBRIGHT 3535 UVC+UVA LEDs are available in plane and ball-head styles for compact UV LED modules.
UV LED selection depends on wavelength, radiant power, forward voltage, drive current, viewing angle, thermal design and the required sterilization LED or UV curing application. The table below keeps model, part number and electrical data visible for purchasing and engineering review.
Product Name and Model List
- 3535 UVC+UVA Plane

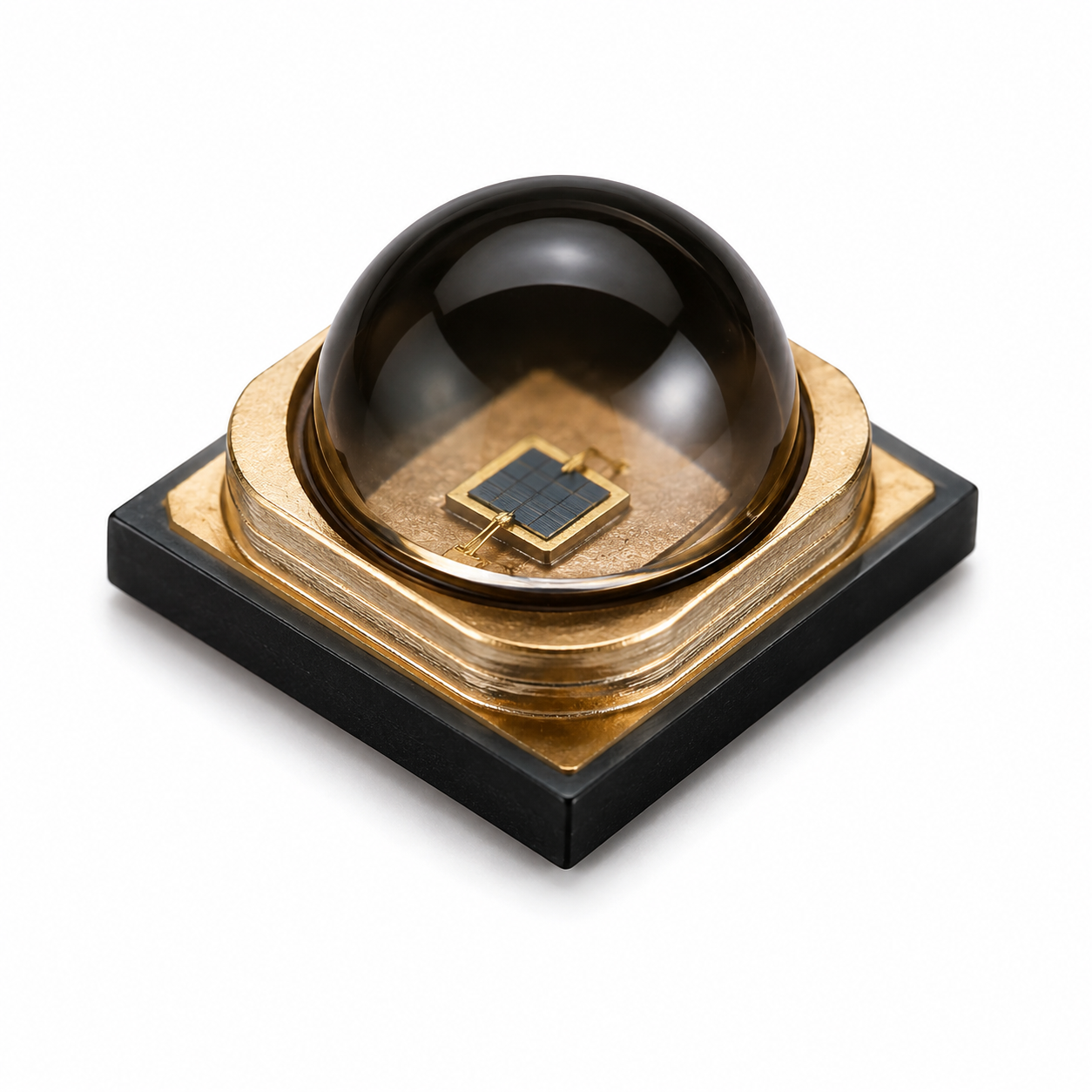

- 3535 UVC+UVA Ball Head
Product Photos
UVC + UVA LED Series Product Image Gallery
Specification Table
UVC + UVA LED Series Electrical and Optical Data
| Product | Model | Part No | Product Size | Wavelength (nm) | Radiant Power (mW) | Voltage (V) | Current (mA) | Angle | Reel |
|---|---|---|---|---|---|---|---|---|---|
| 3535 UVC+UVA Plane | 3535 UVC+UVA | KB-3535.1020 | 3.6*3.6 | 270-280 | 6-8 | 5-7 | IF=40 | 120 deg | 1000PCS/Reel |
| 3535 UVC+UVA Plane | 3535 UVC+UVA | KB-3535.1020 | 3.6*3.6 | 390-400 | 10-25 | 3.0-3.4 | IF=60 | 120 deg | 1000PCS/Reel |
| 3535 UVC+UVA Plane | 3535 UVC+UVA | KB-3535.2020 | 3.6*3.6 | 270-280 | 15-20 | 5-7 | IF=100 | 120 deg | 1000PCS/Reel |
| 3535 UVC+UVA Plane | 3535 UVC+UVA | KB-3535.2020 | 3.6*3.6 | 390-400 | 10-25 | 3.0-3.4 | IF=60 | 120 deg | 1000PCS/Reel |
| 3535 UVC+UVA Ball Head | 3535 UVC+UVA | KB-3535.1020 | 3.6*3.6 | 270-280 | 6-8 | 5-7 | IF=40 | 30-90 deg | 1000PCS/Reel |
| 3535 UVC+UVA Ball Head | 3535 UVC+UVA | KB-3535.1020 | 3.6*3.6 | 390-400 | 10-25 | 3.0-3.4 | IF=60 | 30-90 deg | 1000PCS/Reel |
| 3535 UVC+UVA Ball Head | 3535 UVC+UVA | KB-3535.2020 | 3.6*3.6 | 270-280 | 15-20 | 5-7 | IF=100 | 30-90 deg | 1000PCS/Reel |
| 3535 UVC+UVA Ball Head | 3535 UVC+UVA | KB-3535.2020 | 3.6*3.6 | 390-400 | 10-25 | 3.0-3.4 | IF=60 | 30-90 deg | 1000PCS/Reel |
Applications
UV LED Application Scenarios
Engineering Review
Send wavelength, target radiant power, package, lens style, drive current, working distance and module structure. KINGBRIGHT can support UV LED selection for sterilization LED, curing, inspection and OEM projects.
Related UV LED Series
Compare UV LED Options
UVA LED Series
UVC LED SeriesUV LED Inquiry
Request UVC + UVA LED Series Quotation and Samples
Share your model, wavelength, optical power, lens type, sample quantity, annual demand and application. We can support quotation, sample arrangement and UV LED technical review.
