Chip LED / Front Light

0201 Front Light LED

Ultra-compact 0201 front-emitting chip LED for high-density PCB indicators, miniature electronics, wearable devices and space-limited SMT assemblies.

0.65 x 0.35 x 0.4 mmIF=5mA120 degree10000PCS/Reel
Request Quotation Review SpecificationsRequest Samples
KINGBRIGHT 0201 front light chip LED specification and product image

Technical Specifications

0201 Front Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
0201Red0.65*0.35*0.4620-63030-10001.8-2.1IF=5120 deg10000PCS/Reel
0201Yellow0.65*0.35*0.4585-59530-15001.8-2.1IF=5120 deg10000PCS/Reel
0201Orange0.65*0.35*0.4600-61030-10001.8-2.1IF=5120 deg10000PCS/Reel
0201Green0.65*0.35*0.4515-525500-20002.5-2.9IF=5120 deg10000PCS/Reel
0201Purple0.65*0.35*0.4390-40010-2002.6-3.0IF=5120 deg10000PCS/Reel
0201Blue0.65*0.35*0.4460-47030-10002.6-3.0IF=5120 deg10000PCS/Reel
0201White0.65*0.35*0.4/100-20002.6-3.0IF=5120 deg10000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Ultra-miniature 0201 package for dense PCB layouts
Front-emitting structure for visible top-side indication
Multiple mono-color options for status and signal design
Tape-and-reel packing for SMT production

Applications

Typical Use Scenarios

Wearable electronicsMobile devicesMiniature indicatorsIoT devicesMedical and handheld electronics

Package and SMT Production Support

This 0201 Chip LED is supplied in 10000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 0201 Front Light is suitable for your application.

FAQ

0201 Front Light LED Buyer Questions

What is the package size of 0201 Front Light LED?

0201 Front Light LED uses a 0.65 x 0.35 x 0.4 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.

Related Chip LED Products

Compare Other Chip LED Packages

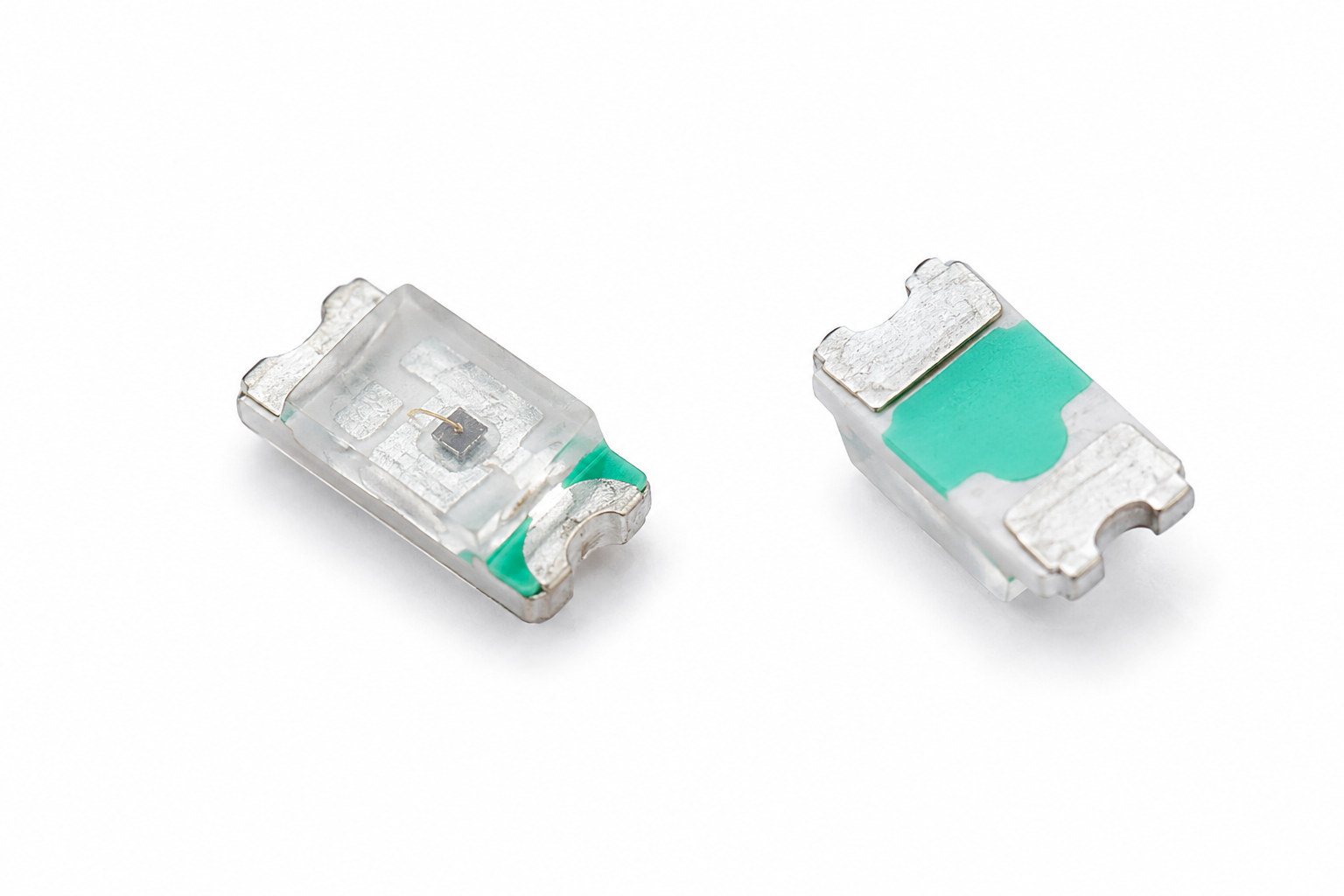

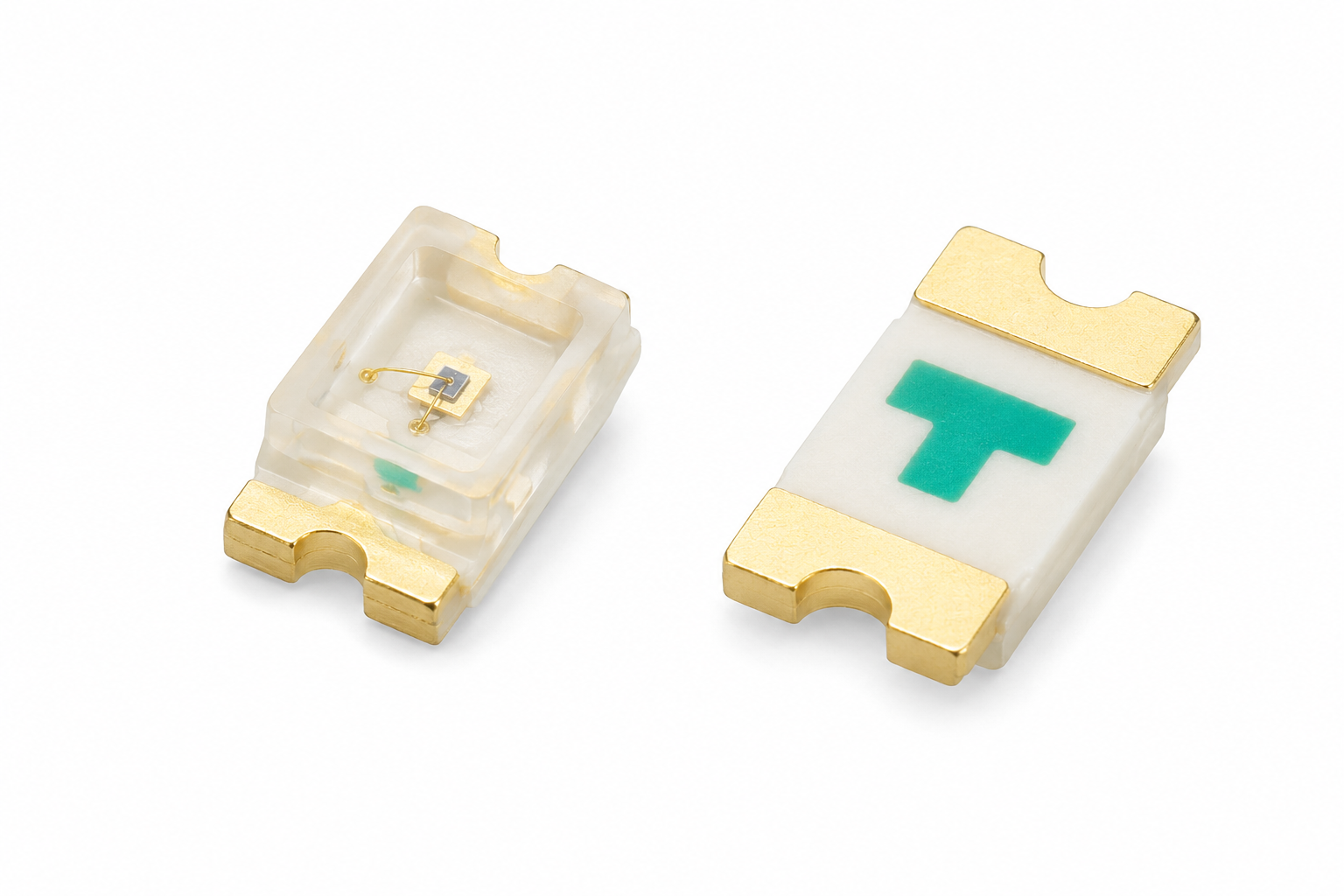

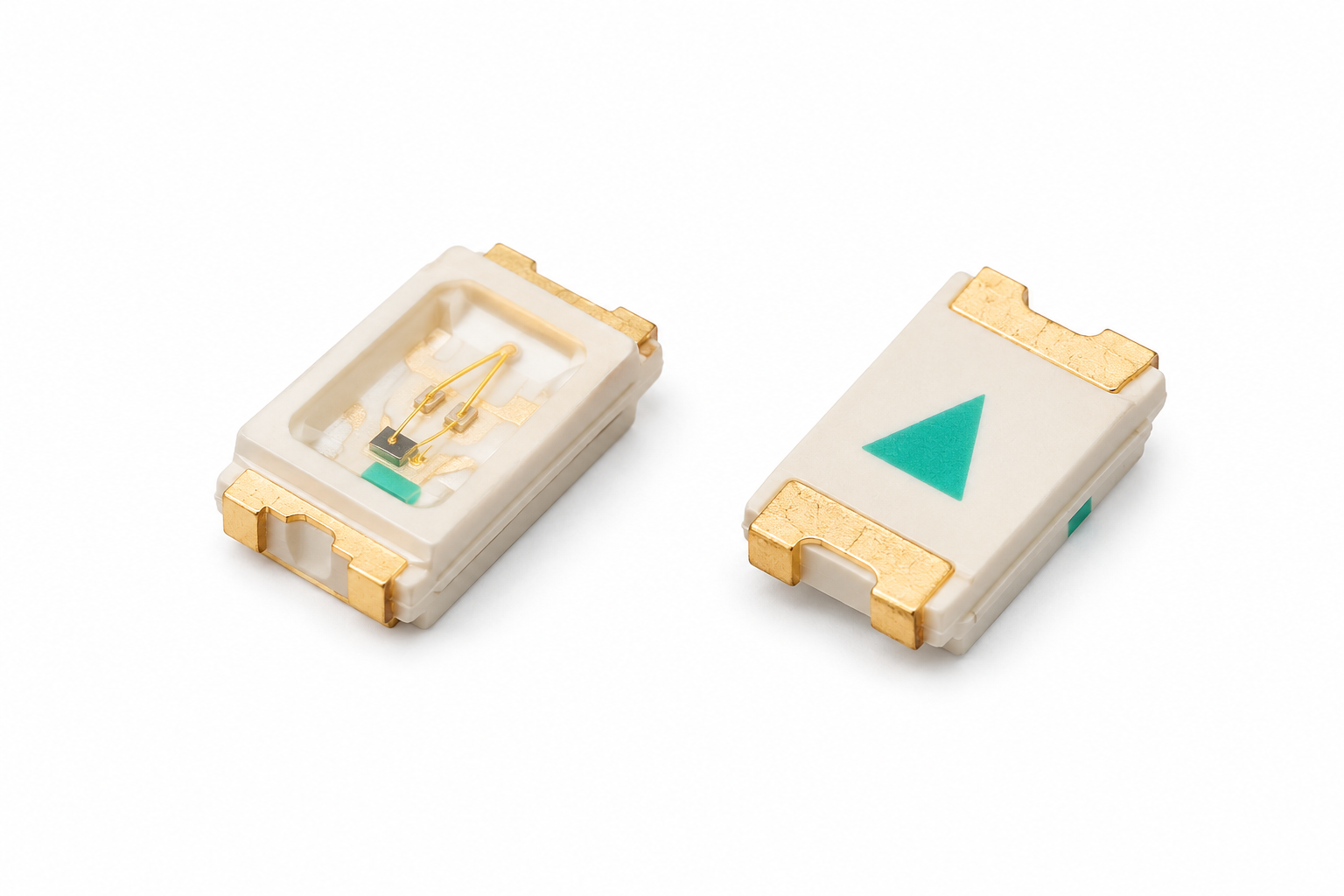

KINGBRIGHT 0402 mono color chip LED specification and product image0402 Mono Color LED1.0 x 0.5 x 0.45 mmKINGBRIGHT 0602 side light chip LED specification and product image0602 Side Light LED1.6 x 0.6 x 1.0 mmKINGBRIGHT 0603 front light chip LED specification and product image0603 Front Light LED1.6 x 0.8 x 0.6/0.4 mmKINGBRIGHT 0802 side light chip LED specification and product image0802 Side Light LED2.1 x 0.6 x 1.0 mmKINGBRIGHT 0805 front light chip LED specification and product image0805 Front Light LED2.0 x 1.25 x 0.8/1.0 mm
