0603 Front Light LED

0603 front light chip LED for general PCB indication, industrial control panels, appliance displays and compact electronic assemblies.

1.6 x 0.8 x 0.6/0.4 mmIF=5mA120 degree4000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

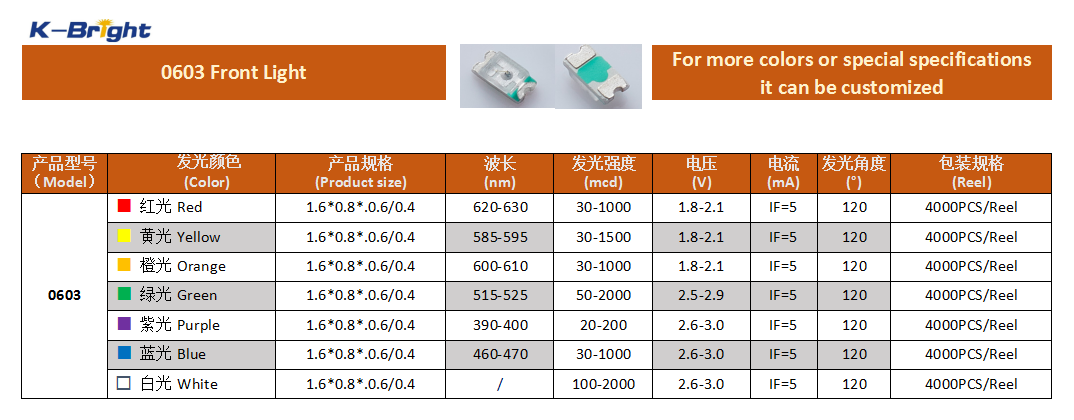

KINGBRIGHT 0603 front light chip LED specification and product image

Technical Specifications

0603 Front Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
0603Red1.6*0.8*0.6/0.4620-63030-10001.8-2.1IF=5120 deg4000PCS/Reel
0603Yellow1.6*0.8*0.6/0.4585-59530-15001.8-2.1IF=5120 deg4000PCS/Reel
0603Orange1.6*0.8*0.6/0.4600-61030-10001.8-2.1IF=5120 deg4000PCS/Reel
0603Green1.6*0.8*0.6/0.4515-52550-20002.5-2.9IF=5120 deg4000PCS/Reel
0603Purple1.6*0.8*0.6/0.4390-40020-2002.6-3.0IF=5120 deg4000PCS/Reel
0603Blue1.6*0.8*0.6/0.4460-47030-10002.6-3.0IF=5120 deg4000PCS/Reel
0603White1.6*0.8*0.6/0.4/100-20002.6-3.0IF=5120 deg4000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Popular 0603 top-view indicator package
Wide 120 degree viewing angle
Low-current IF=5mA operation
Good fit for SMT indicator production

Applications

Typical Use Scenarios

Industrial controlPower supply indicatorsHome appliance displaysConsumer electronicsCommunication equipment

Package and SMT Production Support

This 0603 Chip LED is supplied in 4000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 0603 Front Light is suitable for your application.

FAQ

0603 Front Light LED Buyer Questions

What is the package size of 0603 Front Light LED?

0603 Front Light LED uses a 1.6 x 0.8 x 0.6/0.4 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.

Related Chip LED Products

Compare Other Chip LED Packages

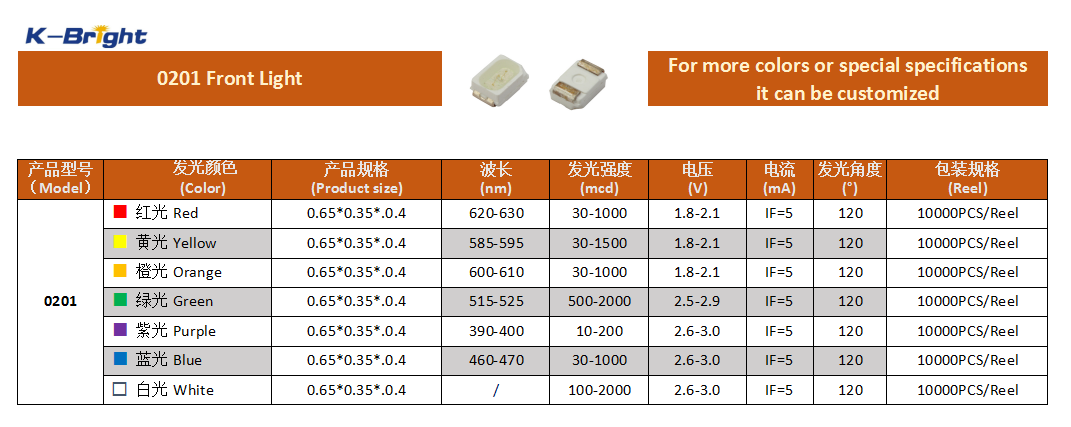

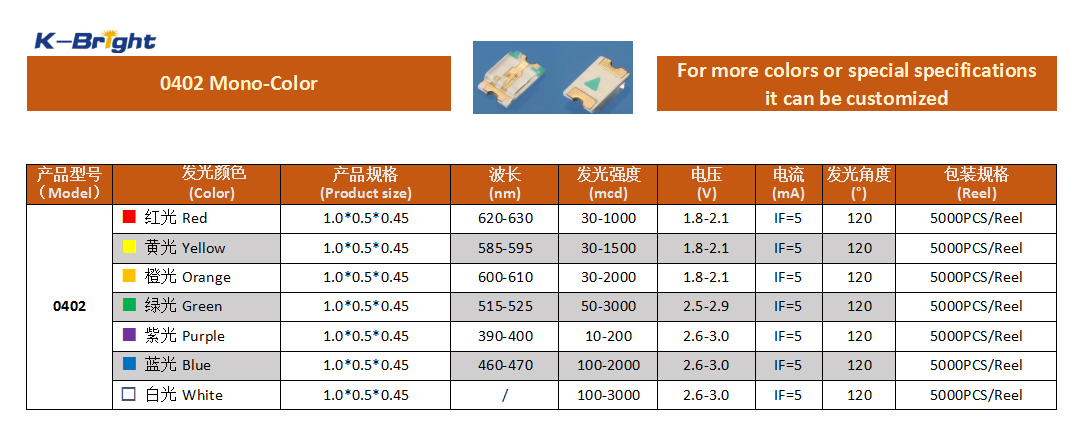

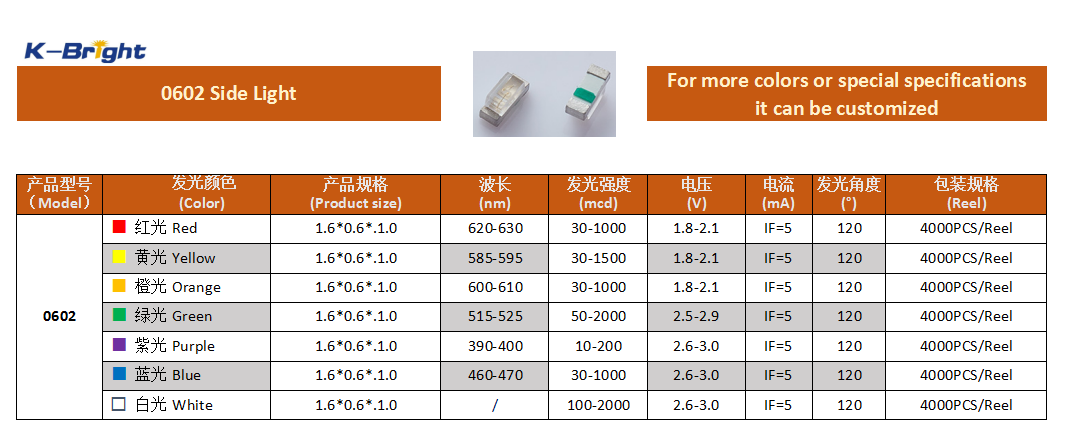

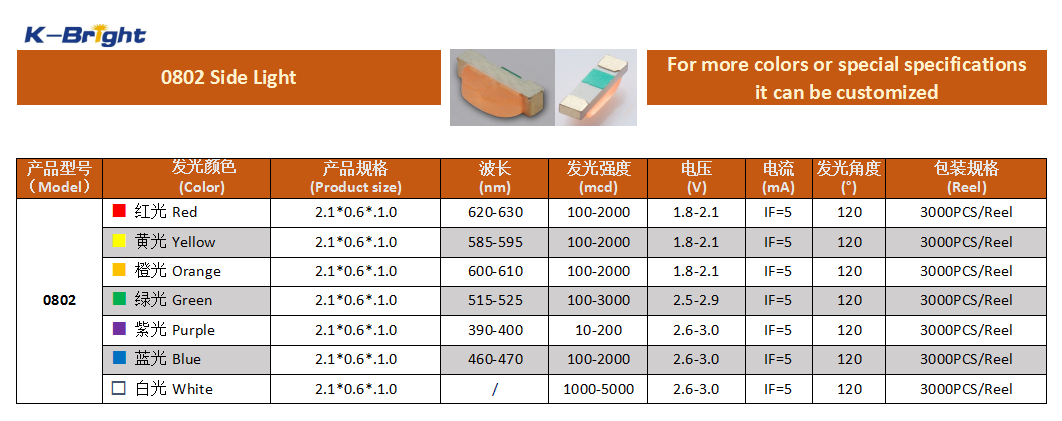

KINGBRIGHT 0201 front light chip LED specification and product image0201 Front Light LED0.65 x 0.35 x 0.4 mmKINGBRIGHT 0402 mono color chip LED specification and product image0402 Mono Color LED1.0 x 0.5 x 0.45 mmKINGBRIGHT 0602 side light chip LED specification and product image0602 Side Light LED1.6 x 0.6 x 1.0 mmKINGBRIGHT 0802 side light chip LED specification and product image0802 Side Light LED2.1 x 0.6 x 1.0 mmKINGBRIGHT 0805 front light chip LED specification and product image0805 Front Light LED2.0 x 1.25 x 0.8/1.0 mm
