0602 Side Light LED

0602 side-emitting chip LED for light guide structures, edge indicators, compact backlight modules and narrow PCB designs.

1.6 x 0.6 x 1.0 mmIF=5mA120 degree4000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

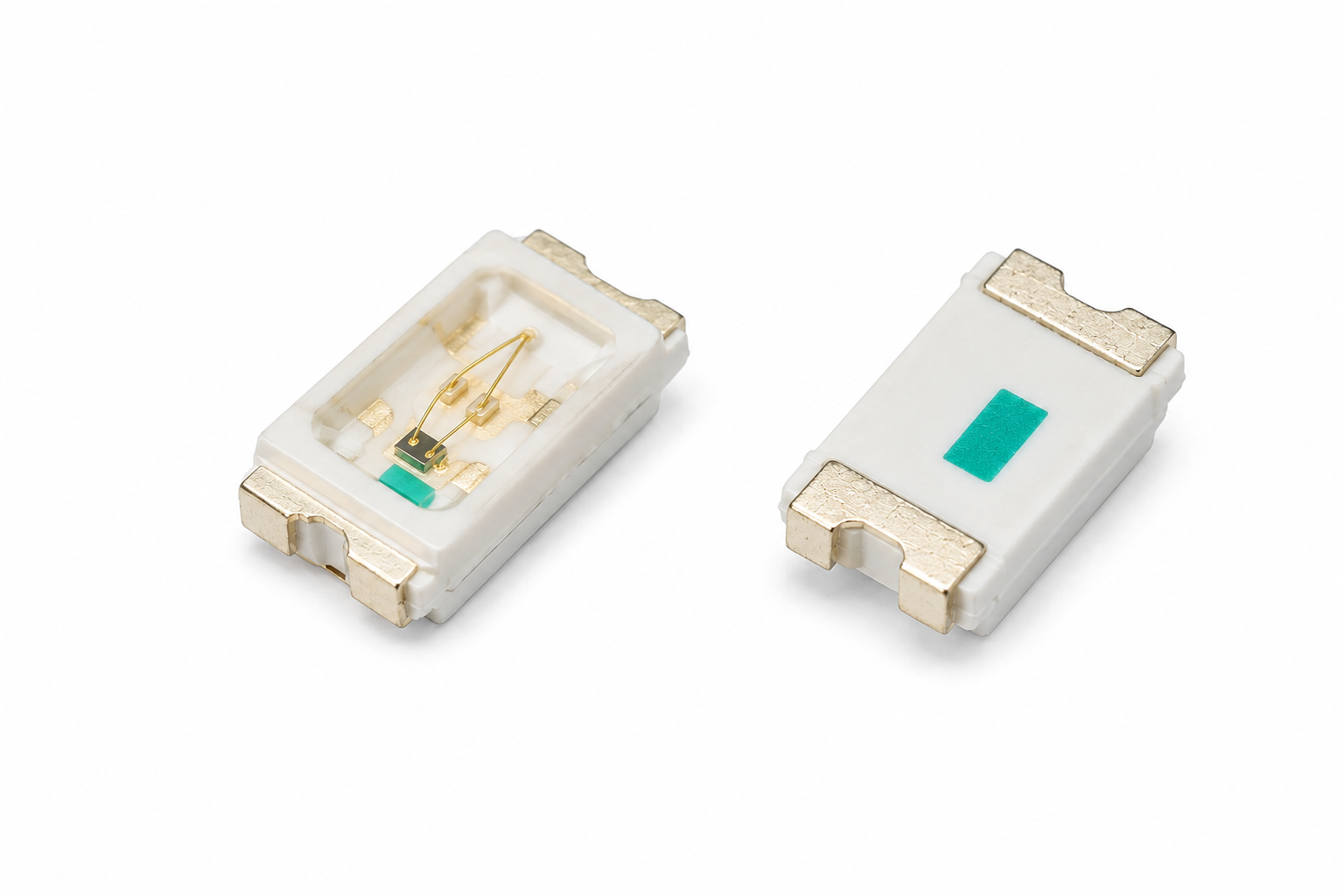

KINGBRIGHT 0602 side light chip LED specification and product image

Technical Specifications

0602 Side Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
0602Red1.6*0.6*1.0620-63030-10001.8-2.1IF=5120 deg4000PCS/Reel
0602Yellow1.6*0.6*1.0585-59530-15001.8-2.1IF=5120 deg4000PCS/Reel
0602Orange1.6*0.6*1.0600-61030-10001.8-2.1IF=5120 deg4000PCS/Reel
0602Green1.6*0.6*1.0515-52550-20002.5-2.9IF=5120 deg4000PCS/Reel
0602Purple1.6*0.6*1.0390-40010-2002.6-3.0IF=5120 deg4000PCS/Reel
0602Blue1.6*0.6*1.0460-47030-10002.6-3.0IF=5120 deg4000PCS/Reel
0602White1.6*0.6*1.0/100-20002.6-3.0IF=5120 deg4000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Side-emitting package for edge-lighting layouts
Compact 1.6 mm class package
Suitable for light-guide and backlight applications
Color options for indication and decorative lighting

Applications

Typical Use Scenarios

LCD backlightLight guide panelsEdge indicatorsAutomotive interior electronicsSmart home controls

Package and SMT Production Support

This 0602 Chip LED is supplied in 4000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 0602 Side Light is suitable for your application.

FAQ

0602 Side Light LED Buyer Questions

What is the package size of 0602 Side Light LED?

0602 Side Light LED uses a 1.6 x 0.6 x 1.0 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
