0802 Side Light LED

0802 side-emitting chip LED for compact backlight, edge illumination and guide-light designs requiring a thin side-view LED package.

2.1 x 0.6 x 1.0 mmIF=5mA120 degree3000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

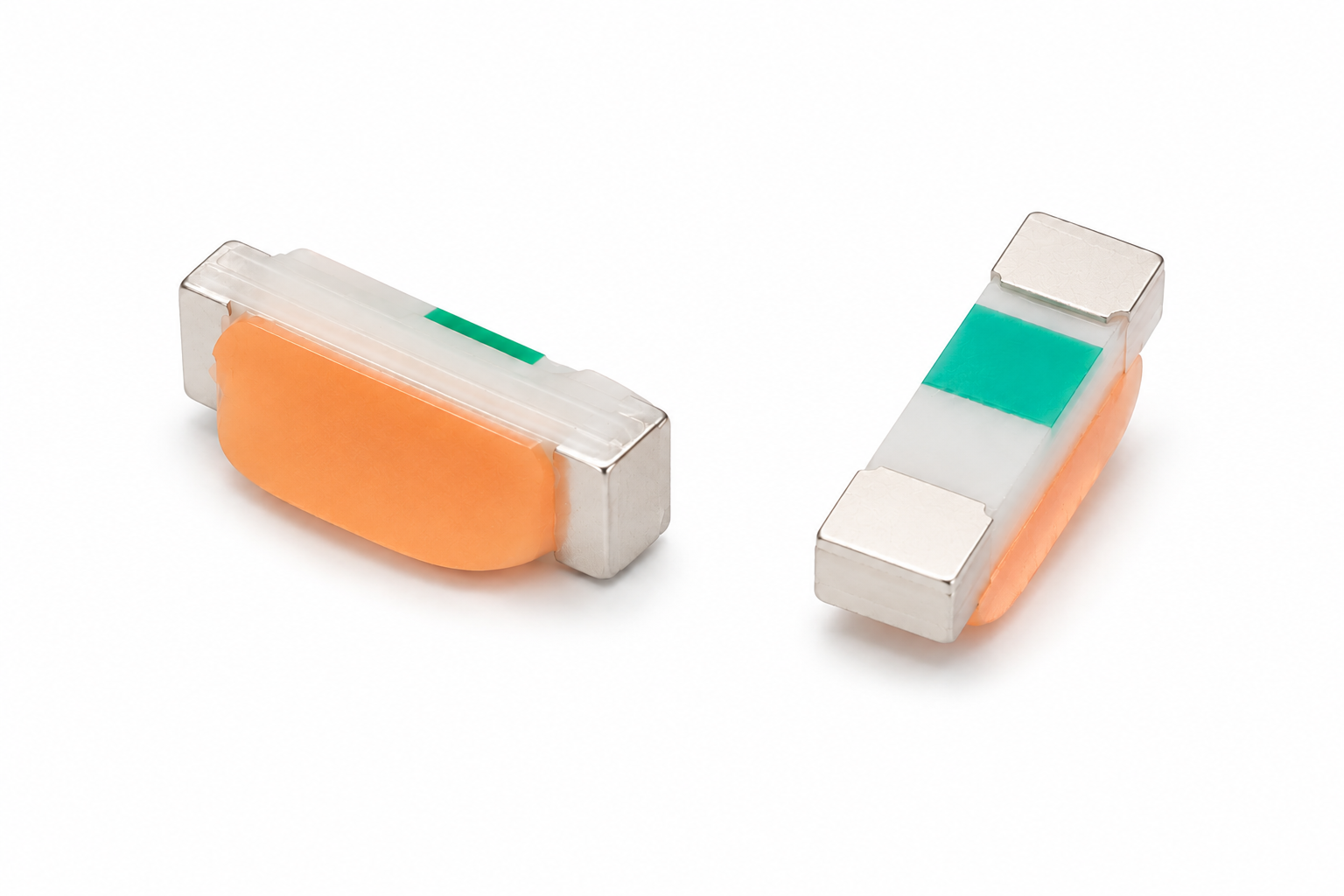

KINGBRIGHT 0802 side light chip LED specification and product image

Technical Specifications

0802 Side Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
0802Red2.1*0.6*1.0620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
0802Yellow2.1*0.6*1.0585-595100-20001.8-2.1IF=5120 deg3000PCS/Reel
0802Orange2.1*0.6*1.0600-610100-20001.8-2.1IF=5120 deg3000PCS/Reel
0802Green2.1*0.6*1.0515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
0802Purple2.1*0.6*1.0390-40010-2002.6-3.0IF=5120 deg3000PCS/Reel
0802Blue2.1*0.6*1.0460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel
0802White2.1*0.6*1.0/1000-50002.6-3.0IF=5120 deg3000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Side-view LED structure for edge lighting
Higher white brightness range up to 5000 mcd
Compact package for slim assemblies
Multiple signal color options

Applications

Typical Use Scenarios

Backlight stripsLight guide systemsControl panel edge lightingAutomotive interior indicatorsPortable electronics

Package and SMT Production Support

This 0802 Chip LED is supplied in 3000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 0802 Side Light is suitable for your application.

FAQ

0802 Side Light LED Buyer Questions

What is the package size of 0802 Side Light LED?

0802 Side Light LED uses a 2.1 x 0.6 x 1.0 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
