0805 Dual Color LED

0805 dual-color chip LED for two-state indication, compact signal modules and PCB designs requiring red/yellow, red/green, red/blue or green/blue output.

2.0 x 1.25 x 1.0 mmIF=5mA120 degree3000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

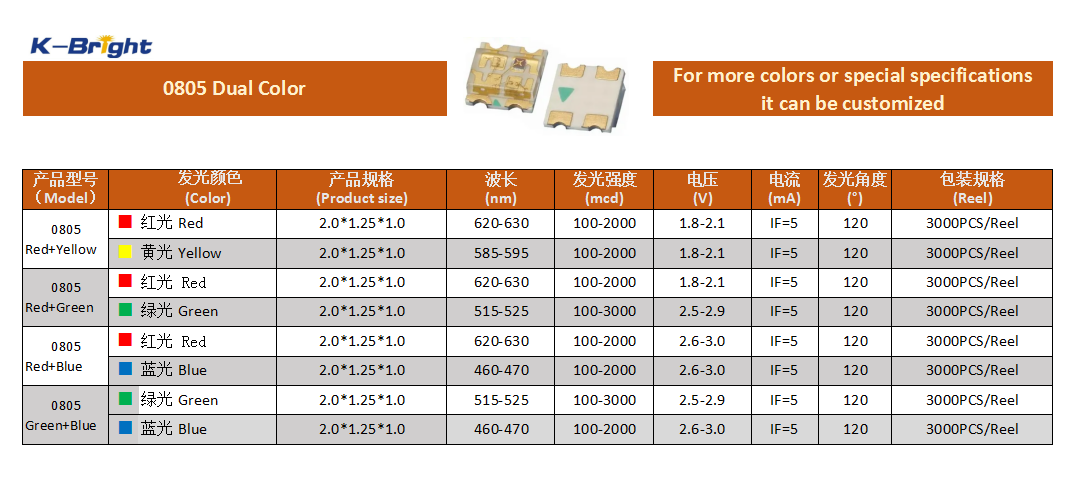

KINGBRIGHT 0805 dual color chip LED specification and product image

Technical Specifications

0805 Dual Color LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
0805 Red+YellowRed2.0*1.25*1.0620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
0805 Red+YellowYellow2.0*1.25*1.0585-595100-20001.8-2.1IF=5120 deg3000PCS/Reel
0805 Red+GreenRed2.0*1.25*1.0620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
0805 Red+GreenGreen2.0*1.25*1.0515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
0805 Red+BlueRed2.0*1.25*1.0620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
0805 Red+BlueBlue2.0*1.25*1.0460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel
0805 Green+BlueGreen2.0*1.25*1.0515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
0805 Green+BlueBlue2.0*1.25*1.0460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Dual-color output in compact 0805 package
Supports two-state indication from one footprint
Multiple color-pair options
Good choice for status, alarm and mode display

Applications

Typical Use Scenarios

Charging indicatorsIndustrial alarm indicatorsMode status lightsConsumer electronicsControl panels

Package and SMT Production Support

This 0805 Chip LED is supplied in 3000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 0805 Dual Color is suitable for your application.

FAQ

0805 Dual Color LED Buyer Questions

What is the package size of 0805 Dual Color LED?

0805 Dual Color LED uses a 2.0 x 1.25 x 1.0 mm SMD chip LED package.

Which colors are available?

Available options include Red+Yellow, Red+Green, Red+Blue and Green+Blue. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
