1204 Side Light LED

1204 side light chip LED for guide-light, backlight and side-view indication applications requiring a larger side-emitting LED package.

3.2 x 1.0 x 1.5 mmIF=5mA120 degree3000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

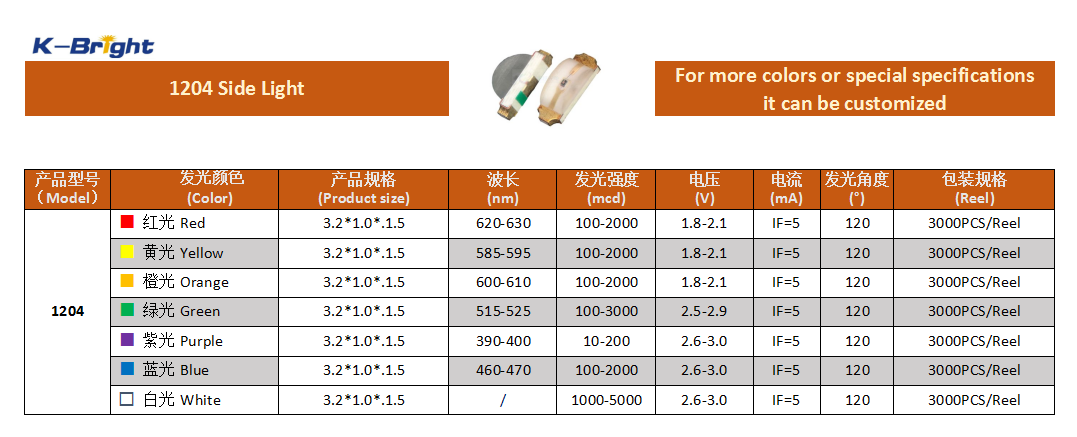

KINGBRIGHT 1204 side light chip LED specification and product image

Technical Specifications

1204 Side Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
1204Red3.2*1.0*1.5620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
1204Yellow3.2*1.0*1.5585-595100-20001.8-2.1IF=5120 deg3000PCS/Reel
1204Orange3.2*1.0*1.5600-610100-20001.8-2.1IF=5120 deg3000PCS/Reel
1204Green3.2*1.0*1.5515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
1204Purple3.2*1.0*1.5390-40010-2002.6-3.0IF=5120 deg3000PCS/Reel
1204Blue3.2*1.0*1.5460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel
1204White3.2*1.0*1.5/1000-50002.6-3.0IF=5120 deg3000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Side-emitting 1204 package for light guide integration
White brightness option up to 5000 mcd
Suitable for larger edge-lighting designs
Multiple mono-color options

Applications

Typical Use Scenarios

Backlight modulesLight pipesAutomotive interior panelsSmart control interfacesDisplay edge lighting

Package and SMT Production Support

This 1204 Chip LED is supplied in 3000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 1204 Side Light is suitable for your application.

FAQ

1204 Side Light LED Buyer Questions

What is the package size of 1204 Side Light LED?

1204 Side Light LED uses a 3.2 x 1.0 x 1.5 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
