Chip LED / Front Light

1206 Front Light LED

1206 front light chip LED for high-visibility PCB indicators, industrial electronics, instrument panels and larger SMT indication designs.

3.2 x 1.6 x 0.9 mmIF=5mA120 degree3000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

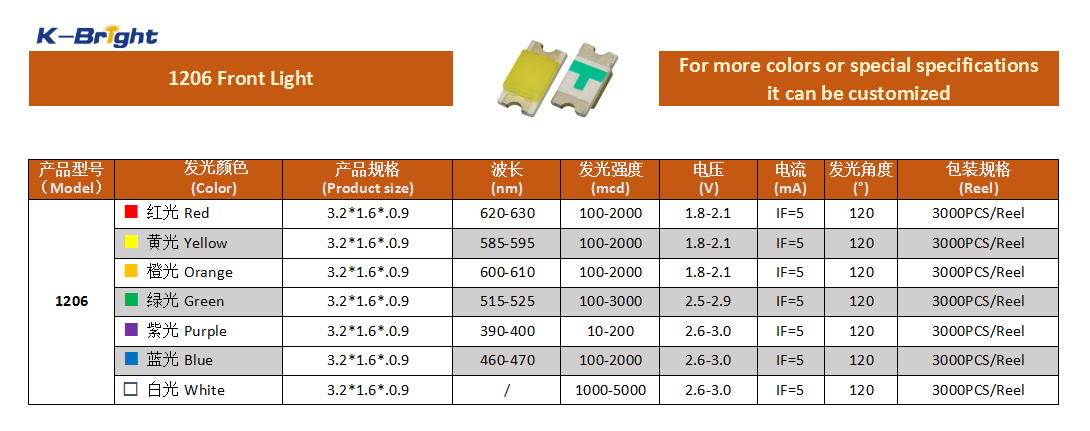

KINGBRIGHT 1206 front light chip LED specification and product image

Technical Specifications

1206 Front Light LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
1206Red3.2*1.6*0.9620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
1206Yellow3.2*1.6*0.9585-595100-20001.8-2.1IF=5120 deg3000PCS/Reel
1206Orange3.2*1.6*0.9600-610100-20001.8-2.1IF=5120 deg3000PCS/Reel
1206Green3.2*1.6*0.9515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
1206Purple3.2*1.6*0.9390-40010-2002.6-3.0IF=5120 deg3000PCS/Reel
1206Blue3.2*1.6*0.9460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel
1206White3.2*1.6*0.9/1000-50002.6-3.0IF=5120 deg3000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Larger 1206 top-view package for stronger indication
High-brightness white option
Reliable SMT reel packaging
Good visibility for industrial products

Applications

Typical Use Scenarios

Industrial instrumentsPower equipment indicatorsHome appliancesControl boardsAutomation electronics

Package and SMT Production Support

This 1206 Chip LED is supplied in 3000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 1206 Front Light is suitable for your application.

FAQ

1206 Front Light LED Buyer Questions

What is the package size of 1206 Front Light LED?

1206 Front Light LED uses a 3.2 x 1.6 x 0.9 mm SMD chip LED package.

Which colors are available?

Available options include Red, yellow, orange, green, purple, blue and white. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
