1209 Dual Color LED

1209 dual-color chip LED for high-visibility two-color indication in industrial panels, controls, power electronics and signal modules.

3.2 x 2.7 x 0.9 mmIF=5mA120 degree3000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

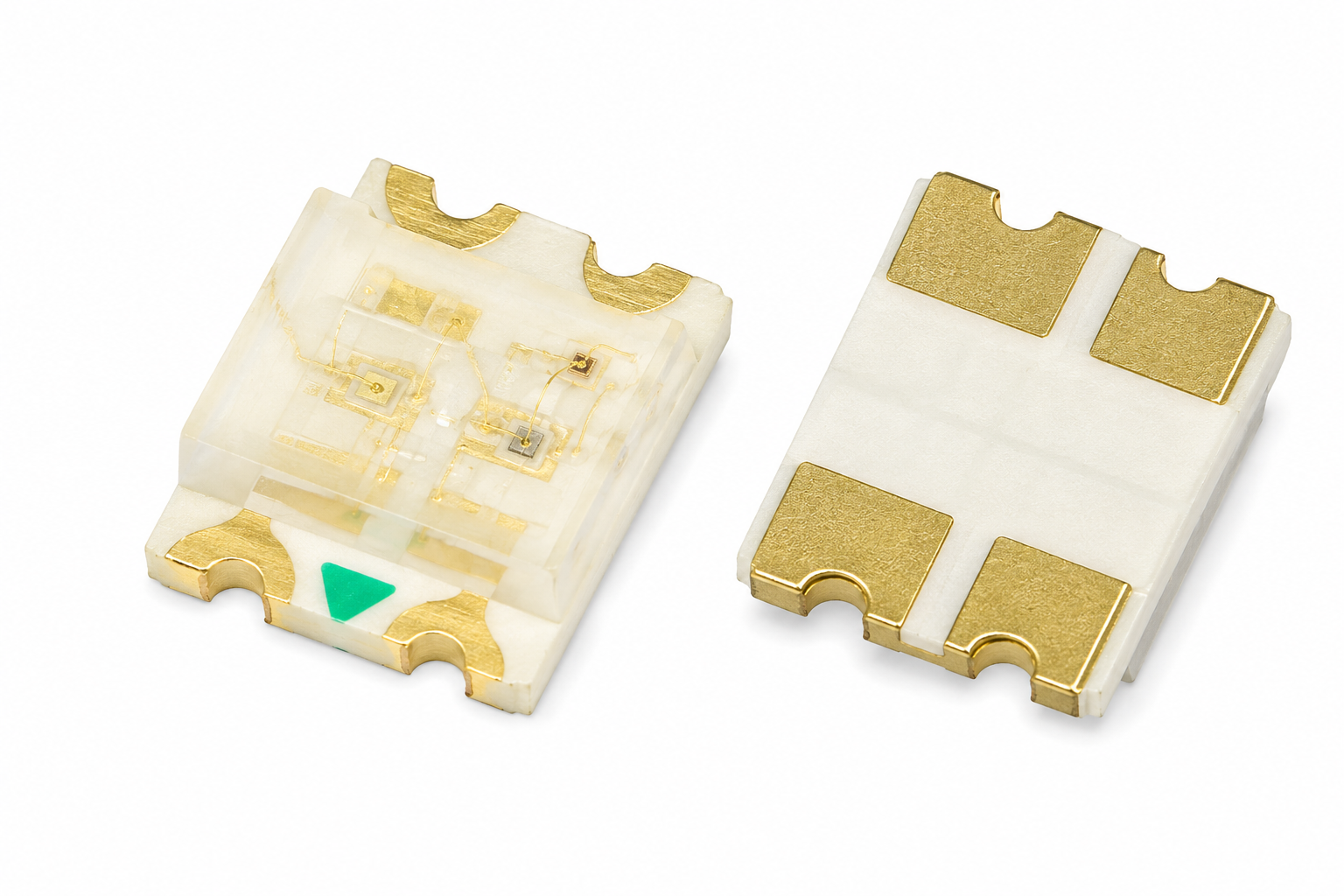

KINGBRIGHT 1209 dual color chip LED specification and product image

Technical Specifications

1209 Dual Color LED Electrical and Optical Data

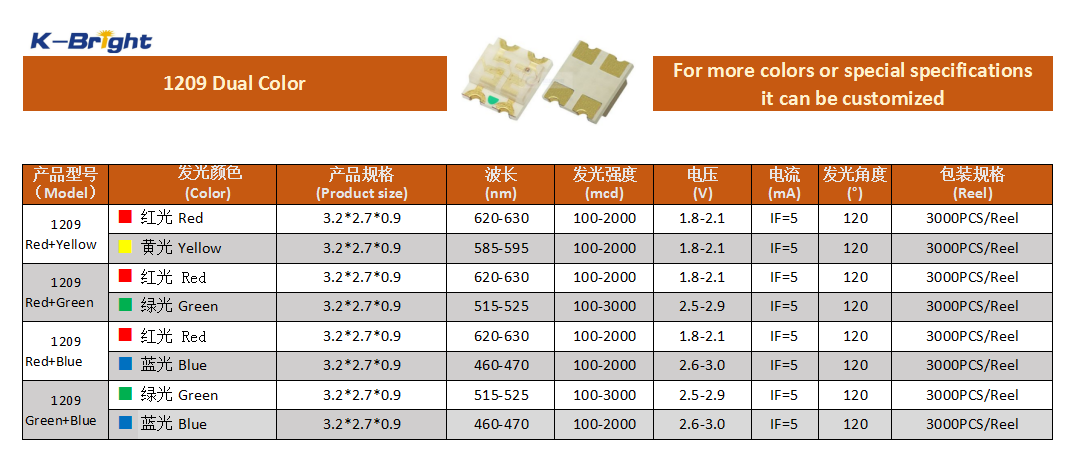

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
1209 Red+YellowRed3.2*2.7*0.9620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
1209 Red+YellowYellow3.2*2.7*0.9585-595100-20001.8-2.1IF=5120 deg3000PCS/Reel
1209 Red+GreenRed3.2*2.7*0.9620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
1209 Red+GreenGreen3.2*2.7*0.9515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
1209 Red+BlueRed3.2*2.7*0.9620-630100-20001.8-2.1IF=5120 deg3000PCS/Reel
1209 Red+BlueBlue3.2*2.7*0.9460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel
1209 Green+BlueGreen3.2*2.7*0.9515-525100-30002.5-2.9IF=5120 deg3000PCS/Reel
1209 Green+BlueBlue3.2*2.7*0.9460-470100-20002.6-3.0IF=5120 deg3000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Dual-color indication in larger 1209 SMD package
Multiple two-color combinations
Strong visibility for panel indication
Efficient IF=5mA drive condition

Applications

Typical Use Scenarios

Industrial control panelsPower modulesAlarm status indicationCommunication equipmentAutomotive electronics

Package and SMT Production Support

This 1209 Chip LED is supplied in 3000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 1209 Dual Color is suitable for your application.

FAQ

1209 Dual Color LED Buyer Questions

What is the package size of 1209 Dual Color LED?

1209 Dual Color LED uses a 3.2 x 2.7 x 0.9 mm SMD chip LED package.

Which colors are available?

Available options include Red+Yellow, Red+Green, Red+Blue and Green+Blue. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
