1615 Dual Color LED

1615 dual-color chip LED for compact two-color signal indication in space-sensitive electronics and SMT assemblies.

1.6 x 1.5 x 0.6 mmIF=5mA120 degree4000PCS/Reel
Request Quotation Review SpecificationsRequest Samples

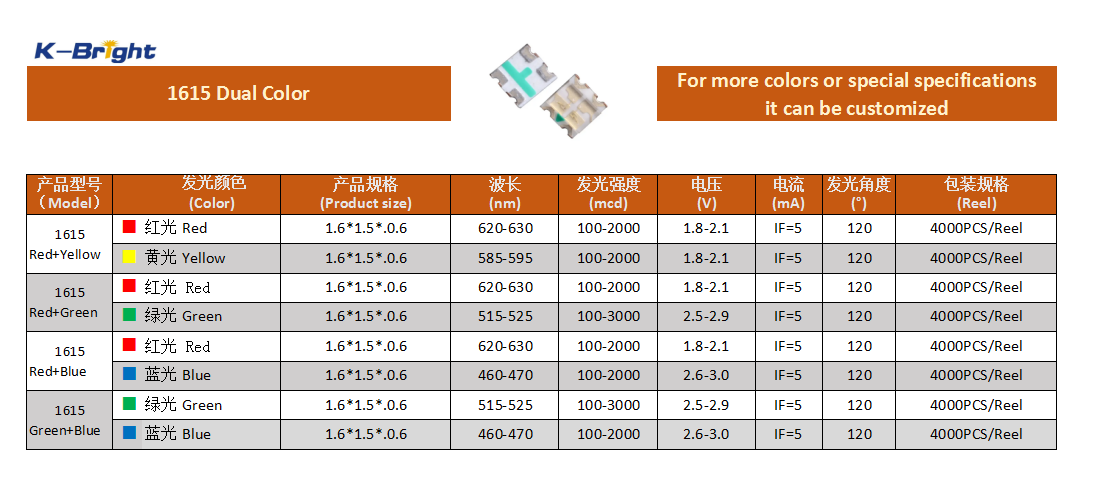

KINGBRIGHT 1615 dual color chip LED specification and product image

Technical Specifications

1615 Dual Color LED Electrical and Optical Data

ModelColorProduct SizeWavelength (nm)Intensity (mcd)Voltage (V)Current (mA)Viewing AngleReel
1615 Red+YellowRed1.6*1.5*0.6620-630100-20001.8-2.1IF=5120 deg4000PCS/Reel
1615 Red+YellowYellow1.6*1.5*0.6585-595100-20001.8-2.1IF=5120 deg4000PCS/Reel
1615 Red+GreenRed1.6*1.5*0.6620-630100-20001.8-2.1IF=5120 deg4000PCS/Reel
1615 Red+GreenGreen1.6*1.5*0.6515-525100-30002.5-2.9IF=5120 deg4000PCS/Reel
1615 Red+BlueRed1.6*1.5*0.6620-630100-20001.8-2.1IF=5120 deg4000PCS/Reel
1615 Red+BlueBlue1.6*1.5*0.6460-470100-20002.6-3.0IF=5120 deg4000PCS/Reel
1615 Green+BlueGreen1.6*1.5*0.6515-525100-30002.5-2.9IF=5120 deg4000PCS/Reel
1615 Green+BlueBlue1.6*1.5*0.6460-470100-20002.6-3.0IF=5120 deg4000PCS/Reel

Product Features

Built for SMT Indicator and Signal Applications

Compact dual-color SMD package
Four two-color combinations
Good fit for compact status indication
4000PCS/Reel for SMT production

Applications

Typical Use Scenarios

Portable electronicsSmart home panelsBattery and charging indicatorsIndustrial modulesCommunication devices

Package and SMT Production Support

This 1615 Chip LED is supplied in 4000PCS/Reel packing for automated SMT assembly. KINGBRIGHT can support color selection, brightness range review, footprint discussion and sample confirmation.

Engineering Review

Share your PCB layout, drive current, target color, visibility distance and production demand. Our team can help confirm whether 1615 Dual Color is suitable for your application.

FAQ

1615 Dual Color LED Buyer Questions

What is the package size of 1615 Dual Color LED?

1615 Dual Color LED uses a 1.6 x 1.5 x 0.6 mm SMD chip LED package.

Which colors are available?

Available options include Red+Yellow, Red+Green, Red+Blue and Green+Blue. Special colors or specifications can be discussed for project requirements.

What is the recommended current?

The listed specification table is based on IF=5mA. Please confirm the exact drive condition before mass production.

Can samples be provided?

Yes. Please send target model, color, quantity, application and shipping information for sample review.
